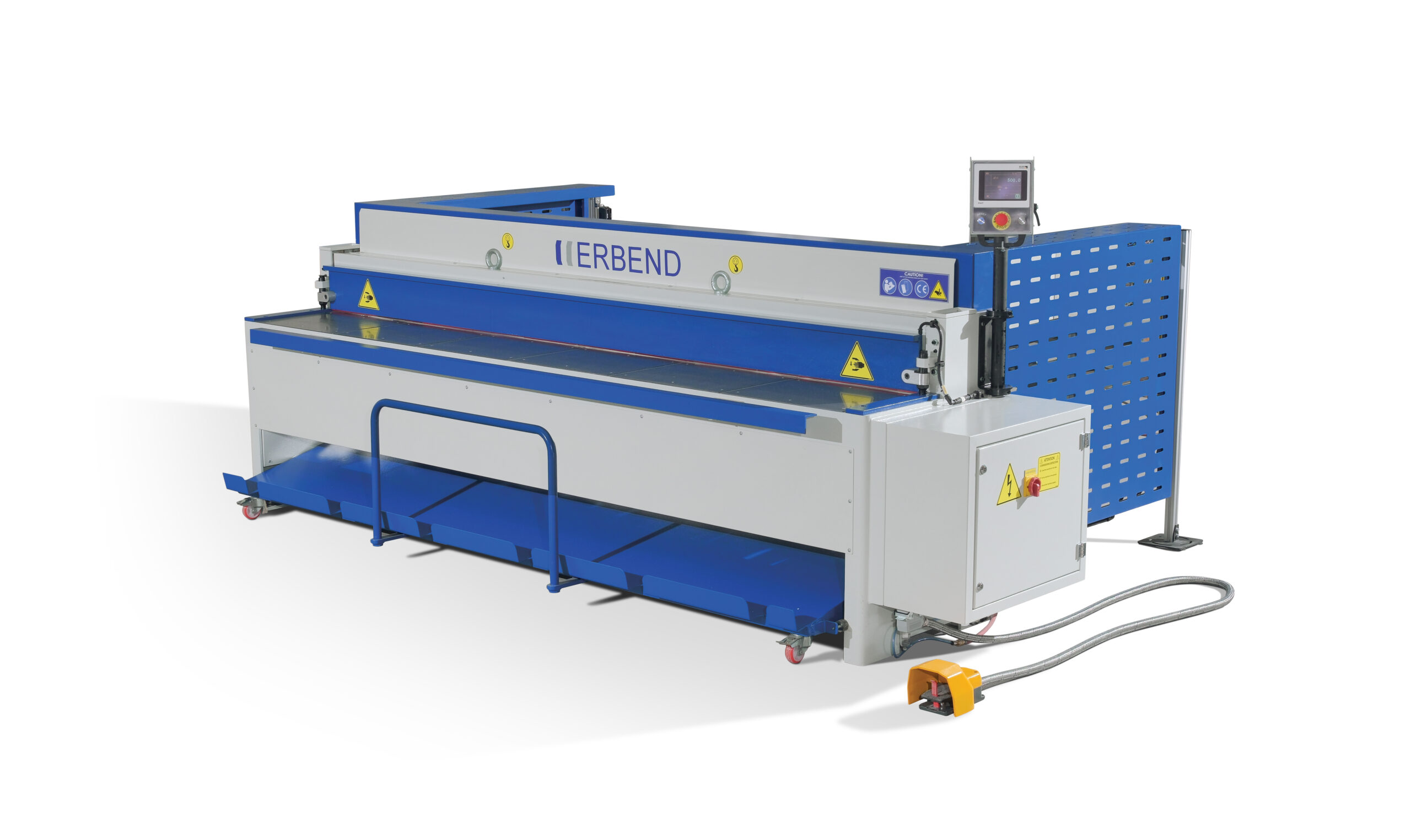

ERBEND 10 ft. Power Shear

ERBEND 10 ft. Power Shear

The ERBEND 10 ft. Power Shear is a powerful and versatile shear that is perfect for a variety of sheet metal cutting tasks. It has a cutting length of over 10 feet and can cut mild steel between 6 and 16 gauge, depending on material and model. The shear is also equipped with a motorized back gauge system, which allows for precise and repeatable cuts. The ERBEND Power Shear increases productivity while reducing labor, setup time, and errors, ensuring consistent, high-quality results for every job.


Categories: ,
EMS 3220 Standard Features:
  • ERCUT NC Control System
  • Friction free guillotine blade geometry & dual sided blades
  • Spring loaded hold-down bar & polyurethane material clamping surface
  • Fixed side squaring gauge & stainless feeding table with ruler on each side
  • Retractable front sheet support bar
  • LED Illumination of cutting area & cutting line
EMS 3220 UPGRADED Features:
  • 1000 mm (39”) Servo motorized back gauge system
  • Pneumatic Sheet Support with FRONT & REAR Drop
  • Squaring arm, 75” side gauge extension
  • Blank Sheet Wagon
  • Integrated transformer; 230 Volt – 3 phase
EMS 3220 Specifications:
  • Material Capacity: 14ga Mild Steel, 16ga Stainless Steel
  • Maximum Material Width: 125"
  • Approximate Dimensions: 145" x 70" x 55"
  • Approximate Weight: 6800 lbs
EMS 3240 Standard Features:
  • ERCUT NC Control System
  • Friction free guillotine blade geometry & dual sided blades
  • Spring loaded hold-down bar & polyurethane material clamping surface
  • Fixed side squaring gauge & stainless feeding table with ruler on each side
  • Retractable front sheet support bar
  • LED Illumination of cutting area & cutting line
EMS 3240 UPGRADED Features:
  • 1000 mm (39”) Servo motorized back gauge system
  • Pneumatic Sheet Support with FRONT & REAR Drop
  • Squaring arm, 75” side gauge extension
  • Blank Sheet Wagon
  • Integrated transformer; 230 Volt – 3 phase
EMS 3240 Specifications:
  • Material Capacity: 6ga Mild Steel, 10ga Stainless Steel
  • Maximum Material Width: 125"
  • Approximate Dimensions: 145" x 70" x 55"
  • Approximate Weight: 7100 lbs
