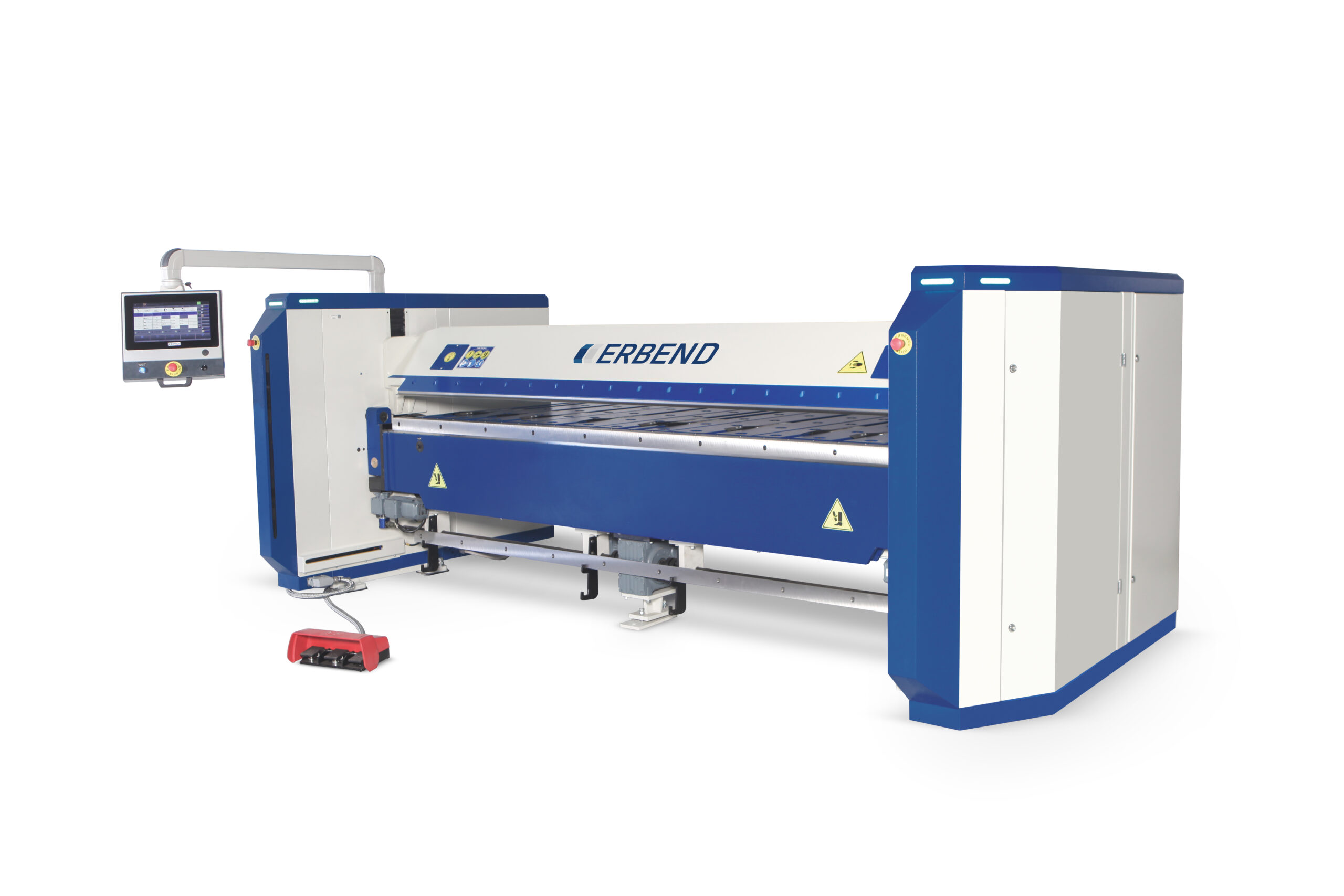

ERBEND 10 ft. Power CNC Sheet Metal Folding Machine

The ERBEND 10 ft. Power CNC Folding Machine is a high-precision, fully automated machine designed for efficient, accurate folding in high production environments. It offers highly customizable control via its intuitive user interface, allowing operators to create custom profiles, and complex bends and shapes with minimal setup time. With robust power and precise control, it is capable of bending sheet metal between 10 and 20 gauge, depending on material and model. The ERBEND Power CNC Folding Machine increases productivity while reducing labor, setup time, and errors, ensuring consistent, high-quality results for every job.

Models/Capacity:
MFB 3210 = 10ft x 20ga
MFB 3215 = 10ft x 16ga
MFB 3220 = 10ft x 14ga
MFB 3235 = 10ft x 10ga

Contact us for pricing.

Categories: ,

Product Description

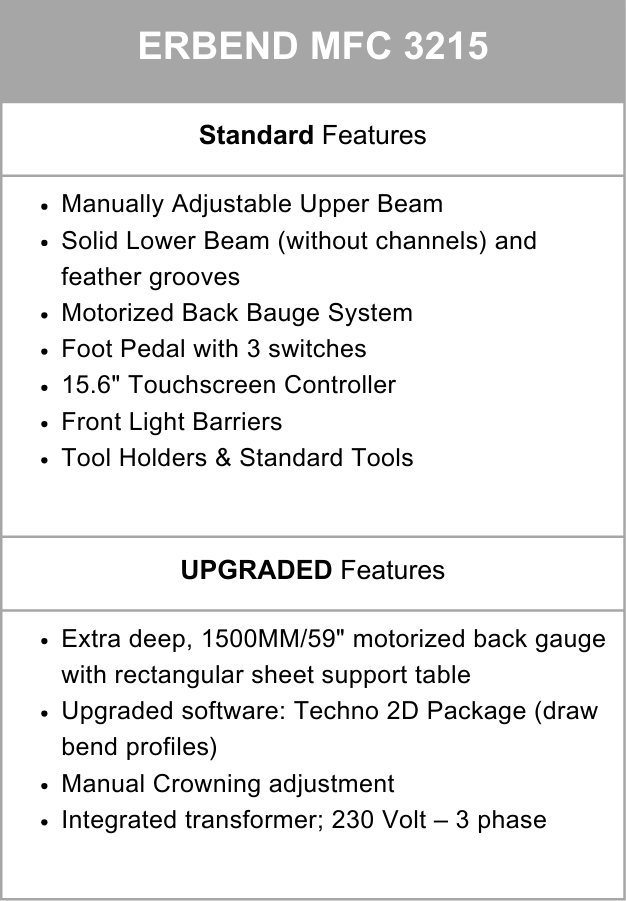

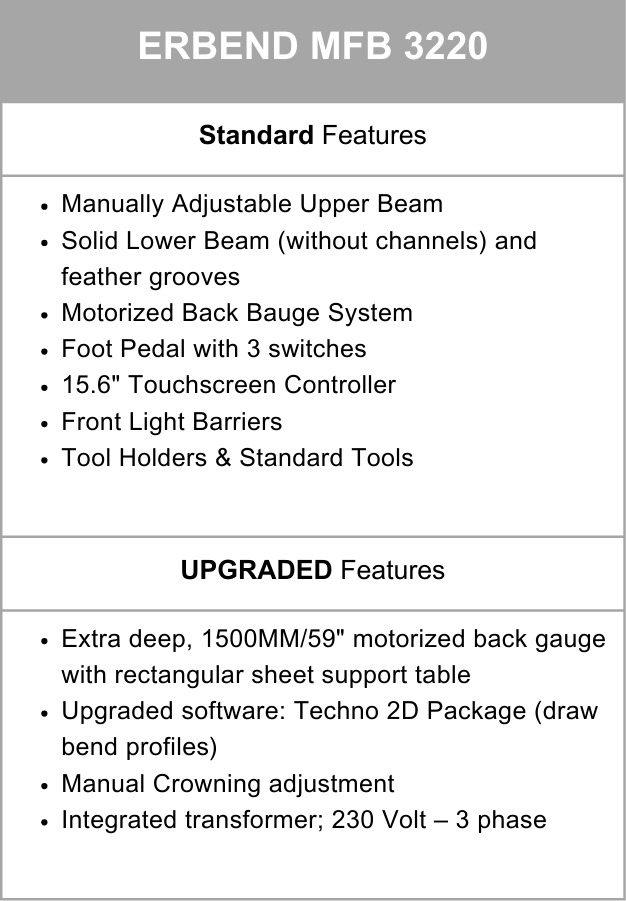

Features:

  • 15.6" touchscreen controller for easy programming and operation
  • Segmented, manually adjustable upper folding beam
  • Motorized back gauge system and sheet support table with ball casters
  • 3 switch control foot pedal


Specifications:

  • Maximum Material Capacity: 10/14/16/20 ga, depending on model
  • Maximum Material Width: 125"
  • Maximum Opening Height: 8.6"
  • Approximate Dimensions: 175"W x 87"D x 75"H
  • Approximate Weight: 9920 lbs
