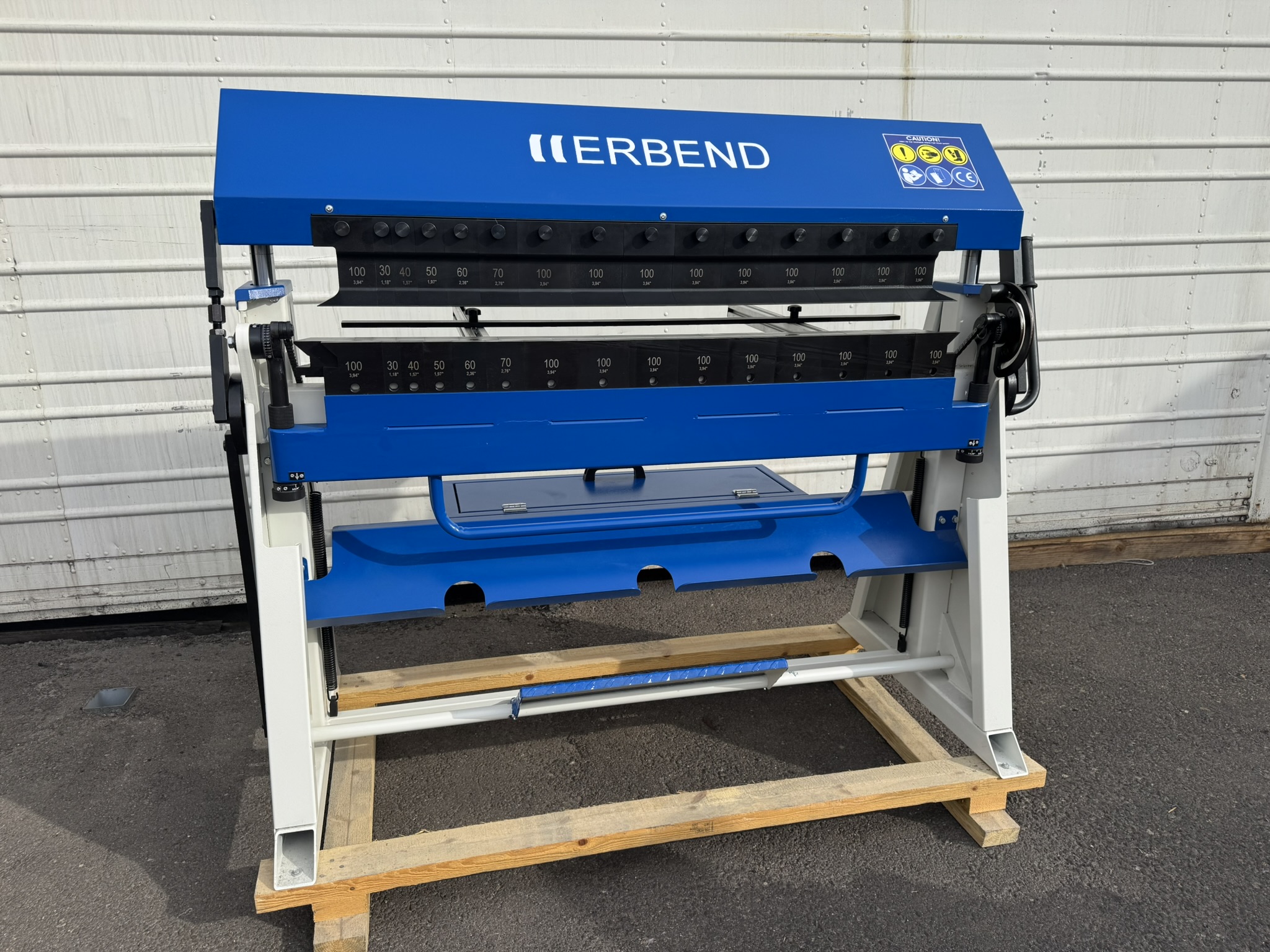

ERBEND 4 ft. Manual Segmented Brake

The ERBEND 4 ft. Manual Segmented Brake is a robust, manually operated machine, capable of bending sheets up to 18 gauge. The vertical clamping beam allows a 7.8″ opening height, and the ERBEND easy tool clamping system makes set-up fast and easy. There is segmented tooling for both the clamping beam and lower beam tools, allowing bending in inverse directions to enable special profiles, such as boxes and pans, to be formed.

Contact us for pricing.

Category:

Product Description

Features:

  • 15 clearly labeled tooling segments on top and bottom bending surfaces for creation of complex bending profiles

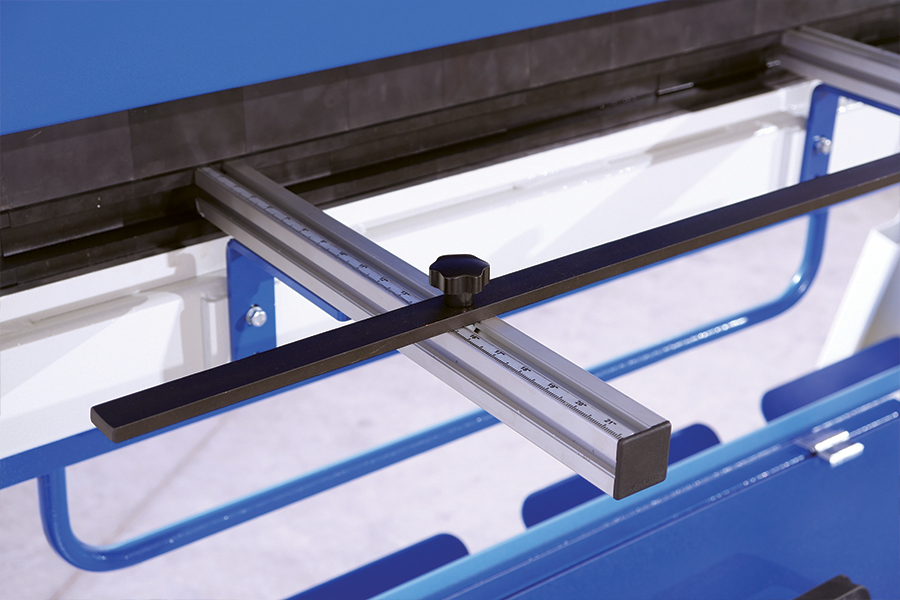

  • Manual backgauge for consistent material positioning
  • Mounted on heavy duty locking casters for easy repositioning


Specifications:

  • Maximum Material Capacity: 18 ga Mild Steel
  • Maximum Material Width: 49"
  • Maximum Opening Height: 8"
  • Approximate Dimensions: 67.5″W x 29.5″D x 59″H
  • Approximate Weight: 695 lbs
