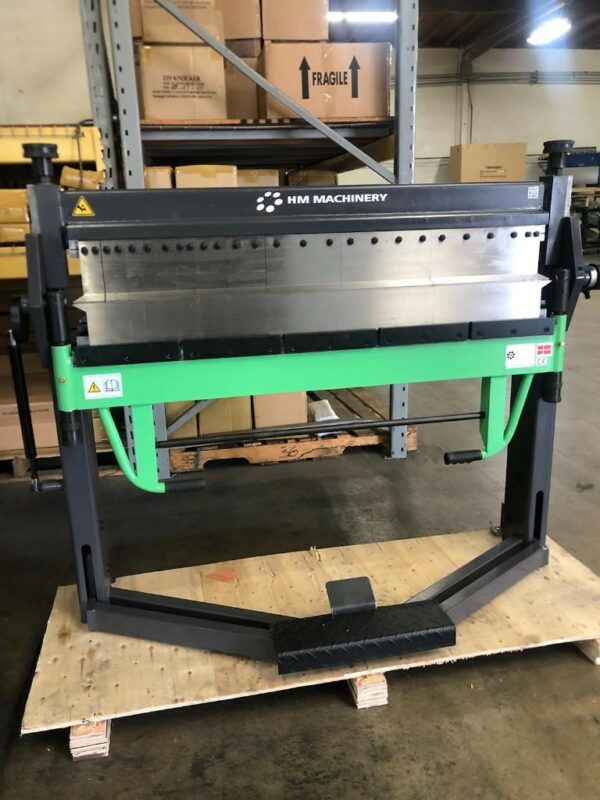

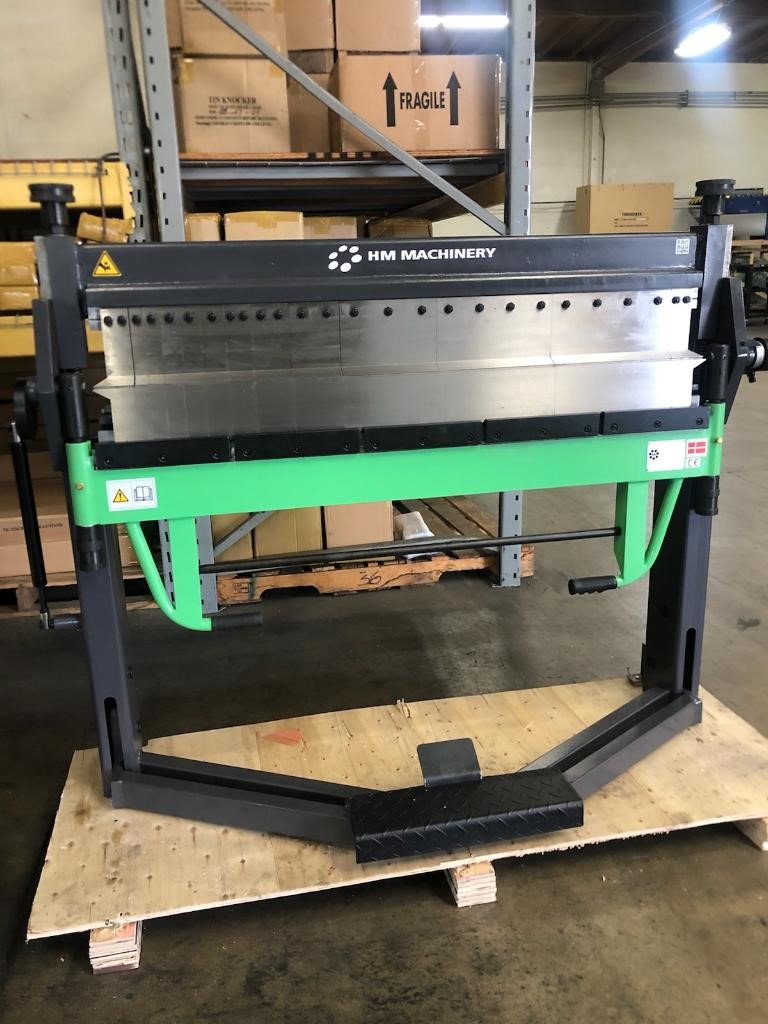

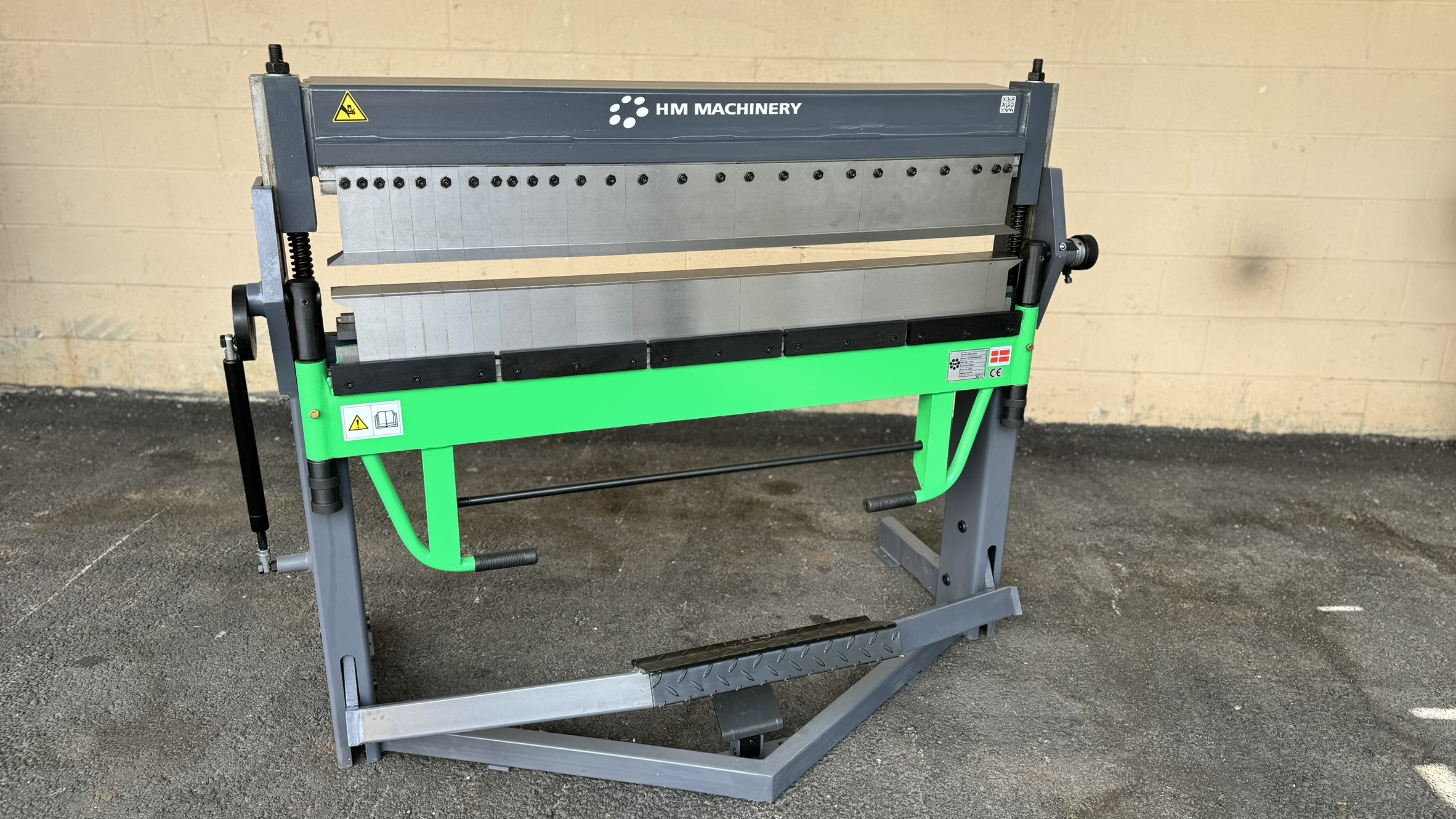

HM Machinery HS-3S-S 4ft x 16 ga Universal Brake

$6,850.00

The HM Machinery HS-3S-S 4ft x 16 ga Universal Brake is a large scale brake with segmented tooling, designed for the fabrication of box and pan and other special profiles, including those with inverse bends. The Superflex is a durable manual brake with a stout base for floor mounting in high production environments, where it can produce high quality and consistent complex bends.

Product Description


Features and Benefits:

  • Precision ground tooling creates straight, clean bends every time.
  • Equipped with 13 segments of tooling on both top and bottom bending surfaces.
  • Precise material positioning is made possible with a foot-operated clamping mechanism, allowing the operator to use both hands to handle and position material
  • Repeat angle stop enables easily repeatable bends.
  • The lift handle is ergonomically designed and operable from either side of the machine, allowing flexibility while fabricating complex shapes and profiles.

Specifications:

  • Maximum Bend Length: 50”
  • Maximum Material Capacity: 16-Gauge Mild Steel
  • Maximum Opening: 1.78”
  • Maximum Folding Angle: 100 or 150 Degrees (depending on profile)
  • Approx. Shipping Dimensions: 63” x 36” x 50”
  • Approx. Shipping Weight: 915lbs.
