HM Machinery HS-7S 6ft x 16 ga Box and Pan Brake

HM Machinery HS-7S 6ft x 16 ga Box and Pan Brake

$6,850.00

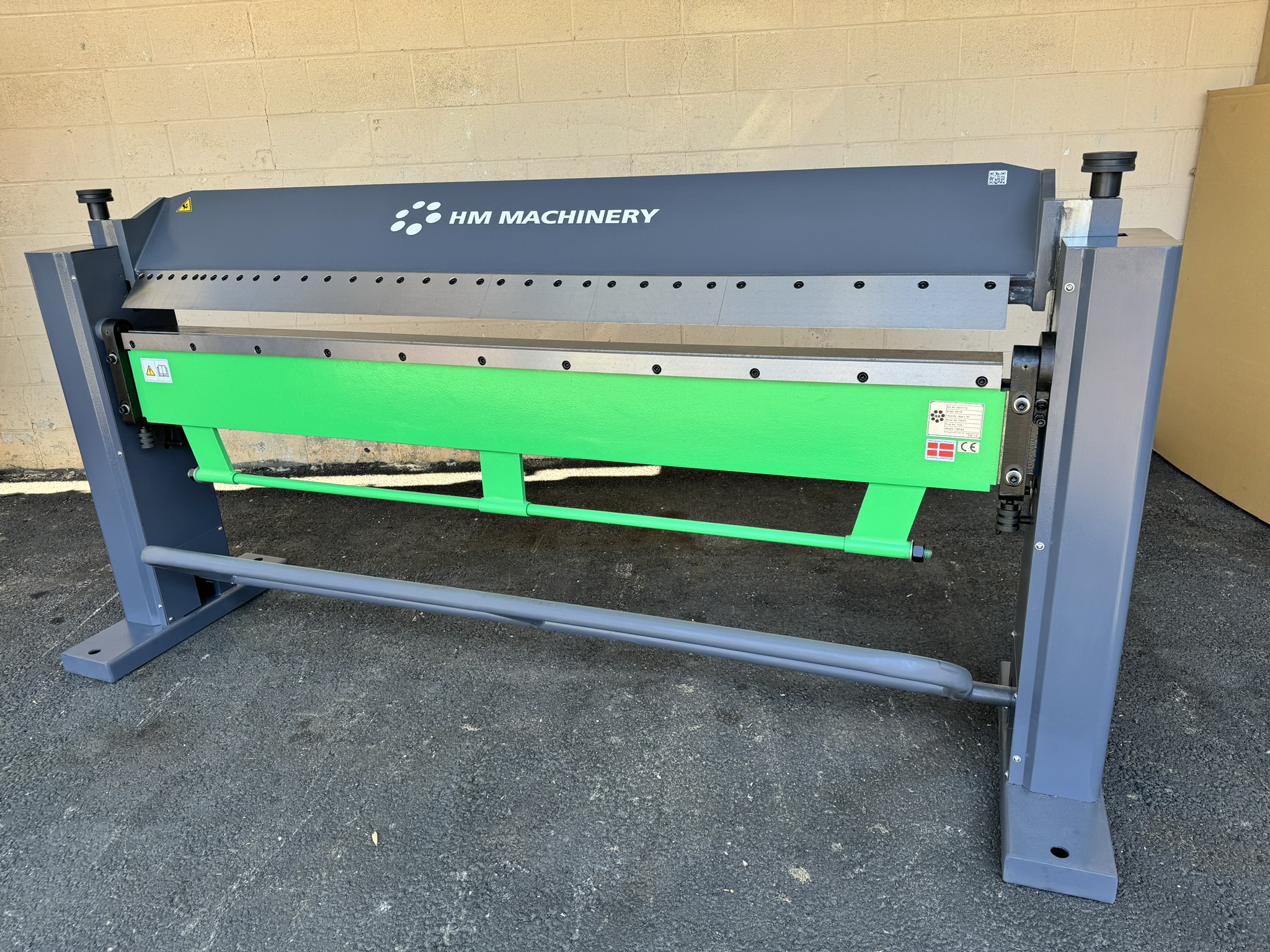

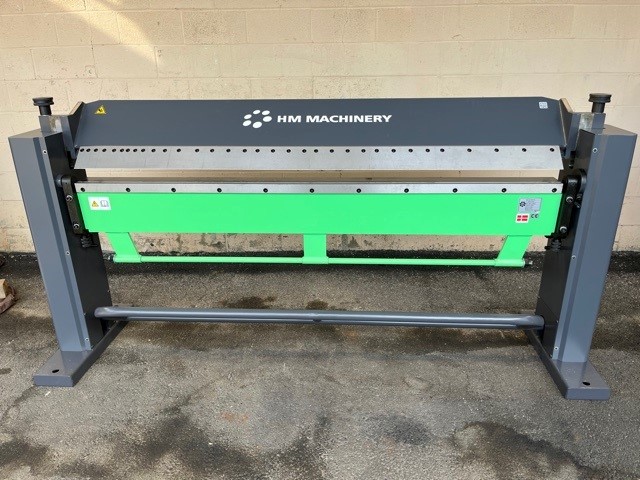

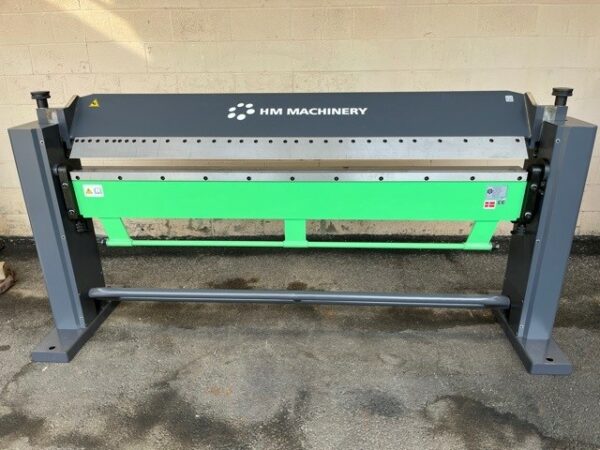

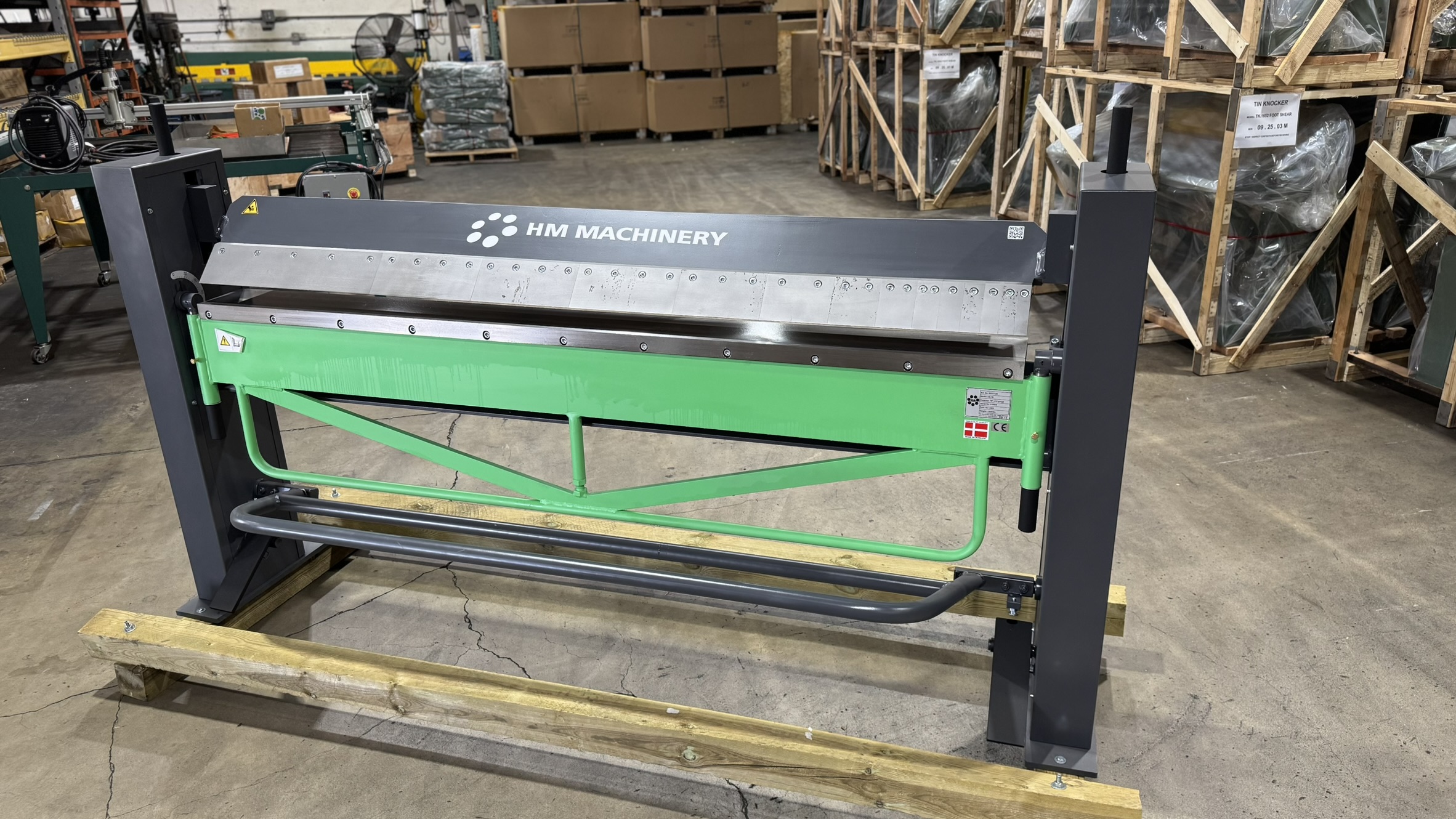

The HM Machinery HS-7S 6ft x 16 ga Box and Pan Brake is a large scale brake with angled segmented tooling, designed for the fabrication of both straight and box and pan profiles. The HS-7S brake is a durable manual brake with a stout base for floor mounting in high production environments, where it can produce high quality and consistent complex bends.

Categories: ,

Product Description


Features and Benefits:

  • Precision ground tooling creates straight, clean bends every time.
  • Equipped with 14 segments of angled tooling on the top bending surfaces.
  • Cross-driven clamping allows easy consistent material positioning.
  • Repeat angle stop enables easily repeatable bends.
  • The full-width lift handle allows easy operability and flexibility while fabricating complex shapes and profiles.

Specifications:

  • Maximum Bend Length: 79"
  • Maximum Material Capacity: 16g
  • Maximum Opening: 1.78"
  • Maximum Folding Angle: 135 degrees
  • Approx. Shipping Dimensions: 96" x 27" x 50"
  • Approx. Shipping Weight: 1365 lbs
