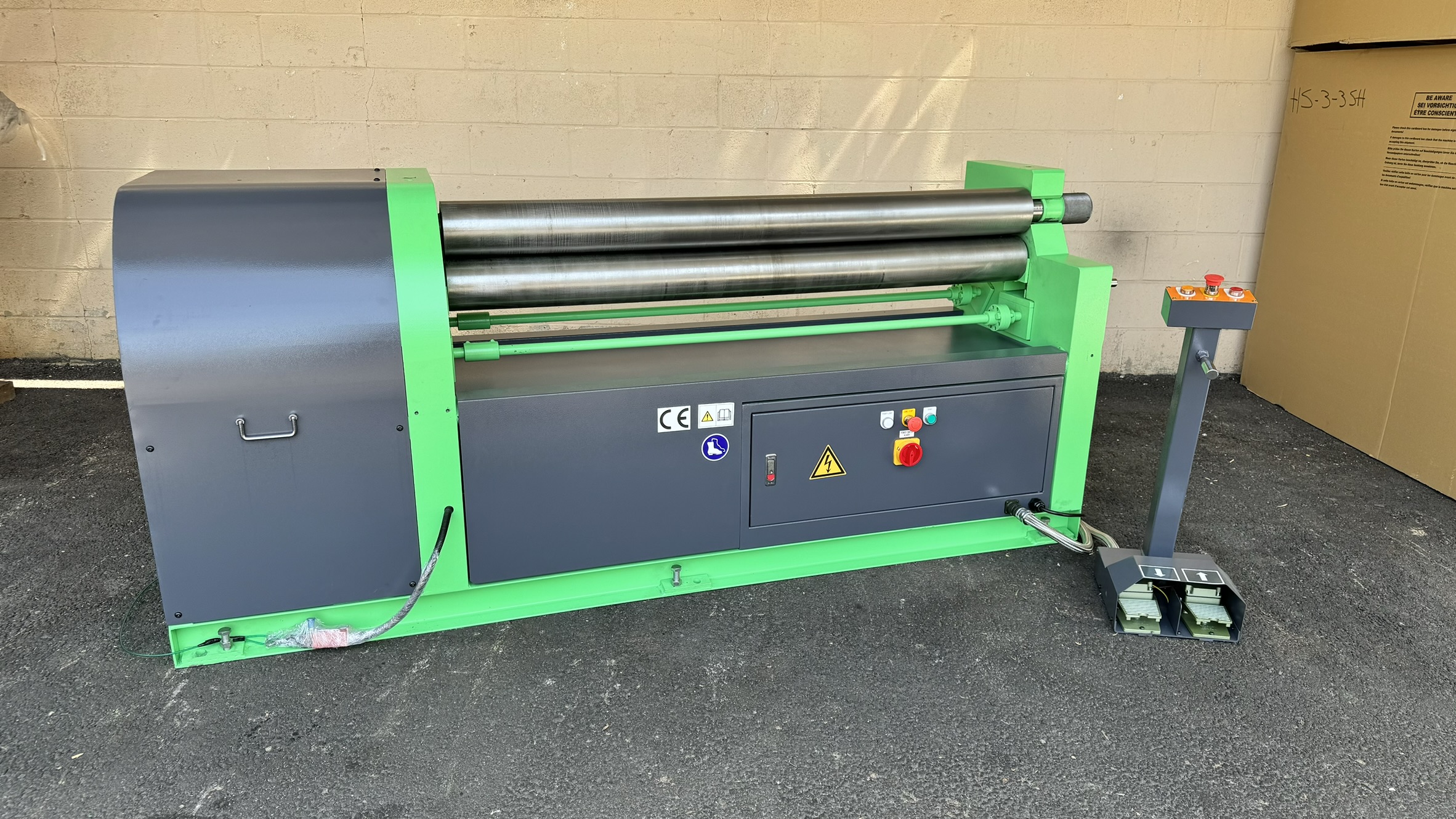

HM Machinery MRM 1550-130 Power Roll

$27,500.00

The HM Machinery MRM 1550-130 Power Roll is a heavy duty motorized bending roll, with 3 rolls mounted on solid steel gable-ends, for heavy gauge, large scale fabrication.

The MRM Power Roll can accommodate sheets up to 60″ wide and 120″ in length, with a material capacity of 3 gauge mild steel. Roll position is easily adjusted via a powered gear system.

With both upper and lower rolls driven, plus a high polished finish, preventing damage to pre-finished components or marking of materials is easily avoided.

Categories: ,

Product Description


Features and Benefits:

  • Upper and lower rolls are driven directly via a hardened gear system.
  • Upper roll swings out to allow easy removal of finished metal roll
  • Easy and accurate adjustment of all 3 independently-mounted rolls to accommodate varying material thicknesses and bend profiles
  • Mobile control panel with 3 position foot pedal (including emergency stop)

Specifications:

  • Maximum Material Width: 60”
  • Maximum Material Capacity: 3 Gauge Mild Steel
  • Roller Diameter: 5”/130mm
  • Minimum Bending Diameter: 7.7"/195mm
  • Motor: 3HP
  • Approx. Shipping Dimensions: 107”W x 26”D x 42”H
  • Approx. Shipping Weight: 3200 lbs.
