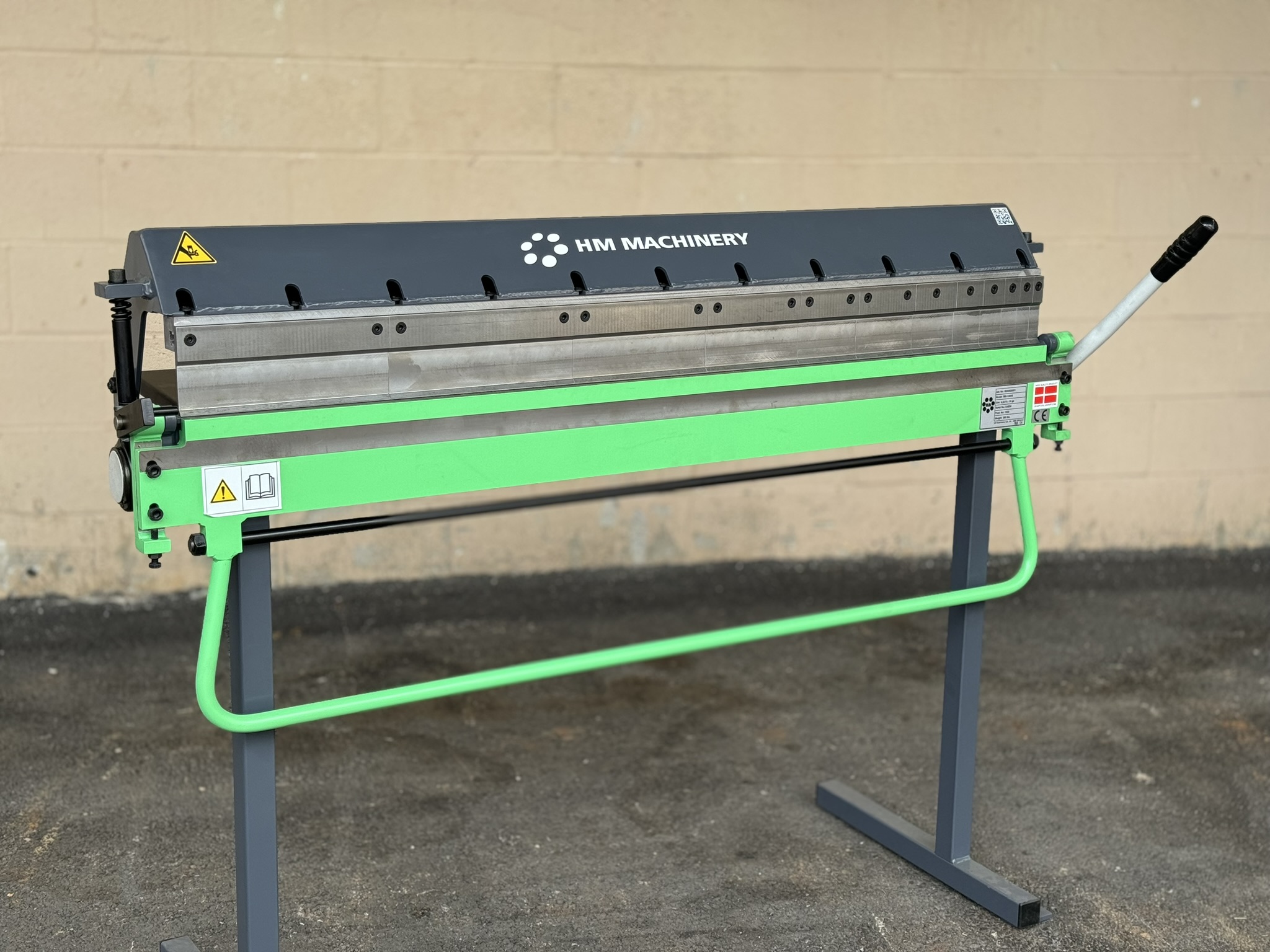

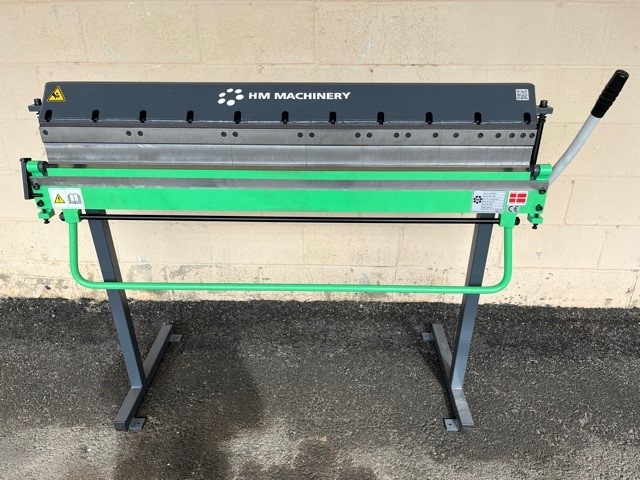

HM Machinery 1300S Box & Pan Brake


The HM Machinery 1300S Box & Pan Brake is a simple and easy to operate segmented brake. Lightweight, but robustly constructed, this manual machine is built for consistently folding thin sheet metal up to 20 gauge. The 12 segmented tooling sections enable the creation of box & pan, and other special profiles, along with straight bends. Precision ground tooling on the segmented nose bar, combined with cross-driven clamping and a repeat angle stop, make the 1300S capable of consistent, repeatable, and accurate bends.

The 1300S Box & Pan Brake comes with floor mounting legs as standard, but can also be bench-mounted for mobile applications.

Product Description

Features and Benefits:

  • Segmented tooling enables the creation of box & pan and other special profiles. Can also perform regular straight bends.
  • Precision ground tooling creates straight, clean bends every time.
  • Cross-driven clamping allows easy consistent material positioning .
  • Repeat angle stop enables easily repeatable bends.
  • Full length apron lift handles are ergonomically designed to allow easy operation.
  • Multiple mounting options make it adaptable to many environments.


  • Maximum Bend Length: 53”
  • Maximum Material Capacity: 20-Gauge Mild Steel
  • Finger/Segment Count: 12
  • Maximum Box/Pan Height: 2.75”
  • Maximum Folding Angle: 95 Degrees
  • Approx. Shipping Dimensions: 60” x 20” x 42”
  • Approx. Shipping Weight: 250lbs.
