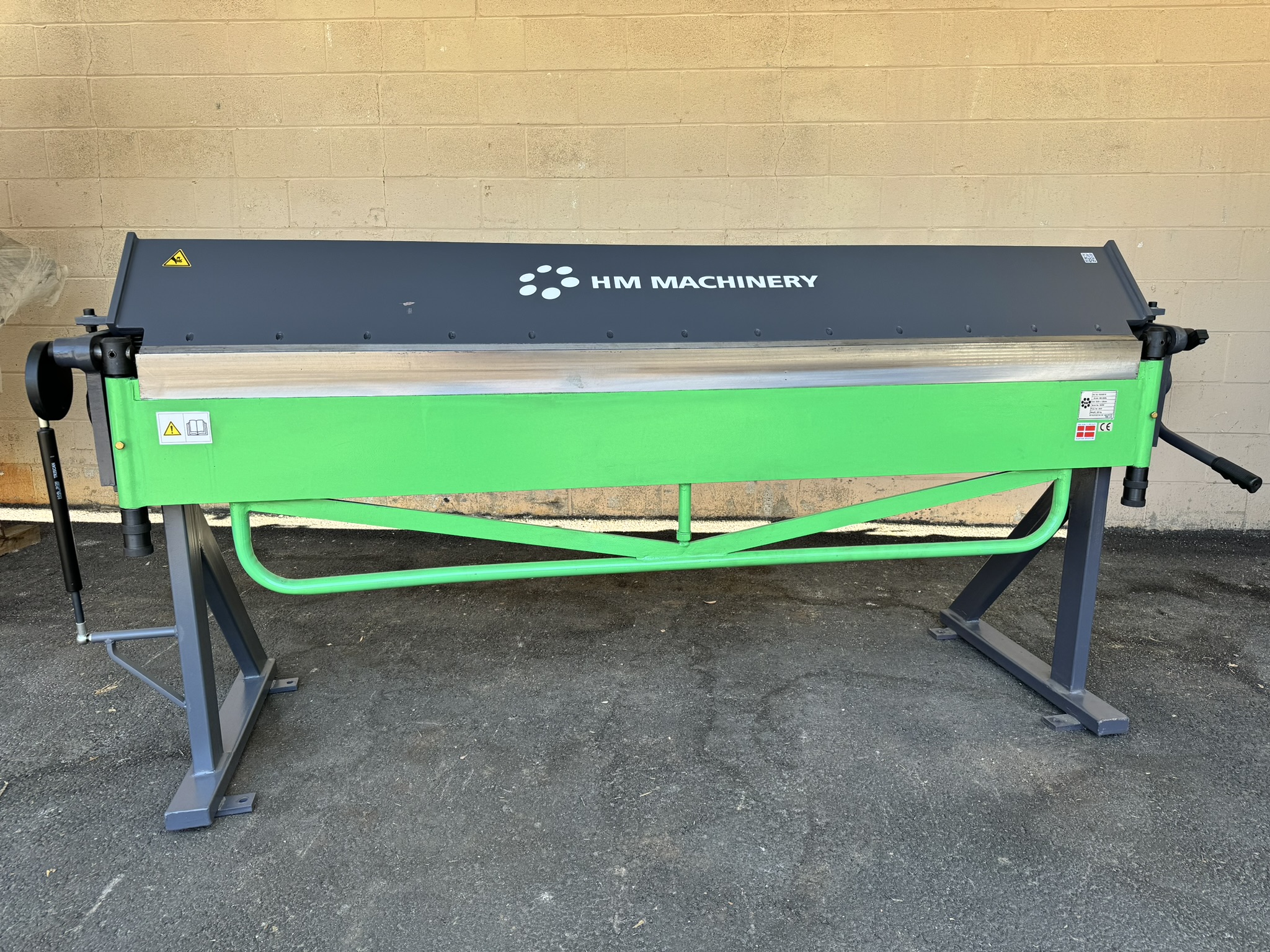

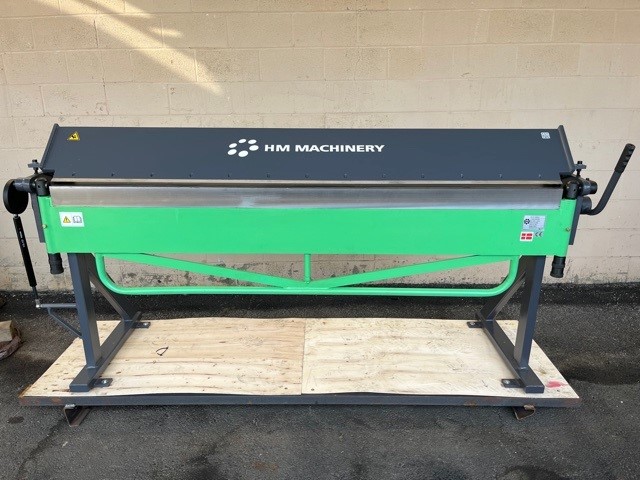

HM Machinery 2000L Straight Brake

$5,650.00

The HM Machinery 2000L Straight Brake is a durable, large-scale manual brake designed to produce consistent high quality bends up to 79″ wide in high-production environments.

Precision ground tooling on the single piece angled nose bar, combined with cross-driven clamping and a repeat angle stop, enable repeatable and accurate bends.

A full-width apron handle and piston-assisted opening and closing make the 2000L easy to operate, even when working with large sheets of material.

Product Description


Features and Benefits:

  • Precision ground tooling on the angled nose bar creates straight, clean bends every time.
  • Cross-driven clamping allows easy consistent material positioning.
  • Repeat angle stop enables easily repeatable bends.
  • Full length apron lift handles are ergonomically designed to allow easy operation, even with large sheets of material.

Specifications:

  • Maximum Bend Length: 79”
  • Maximum Material Capacity: 20-Gauge Mild Steel
  • Maximum Opening: 1.5”
  • Maximum Folding Angle: 135 Degrees
  • Approx. Shipping Dimensions: 92” x 29” x 44”
  • Approx. Shipping Weight: 1050lbs.
