HM Machinery ZP45 Tube Deburring Machine

$2,650.00

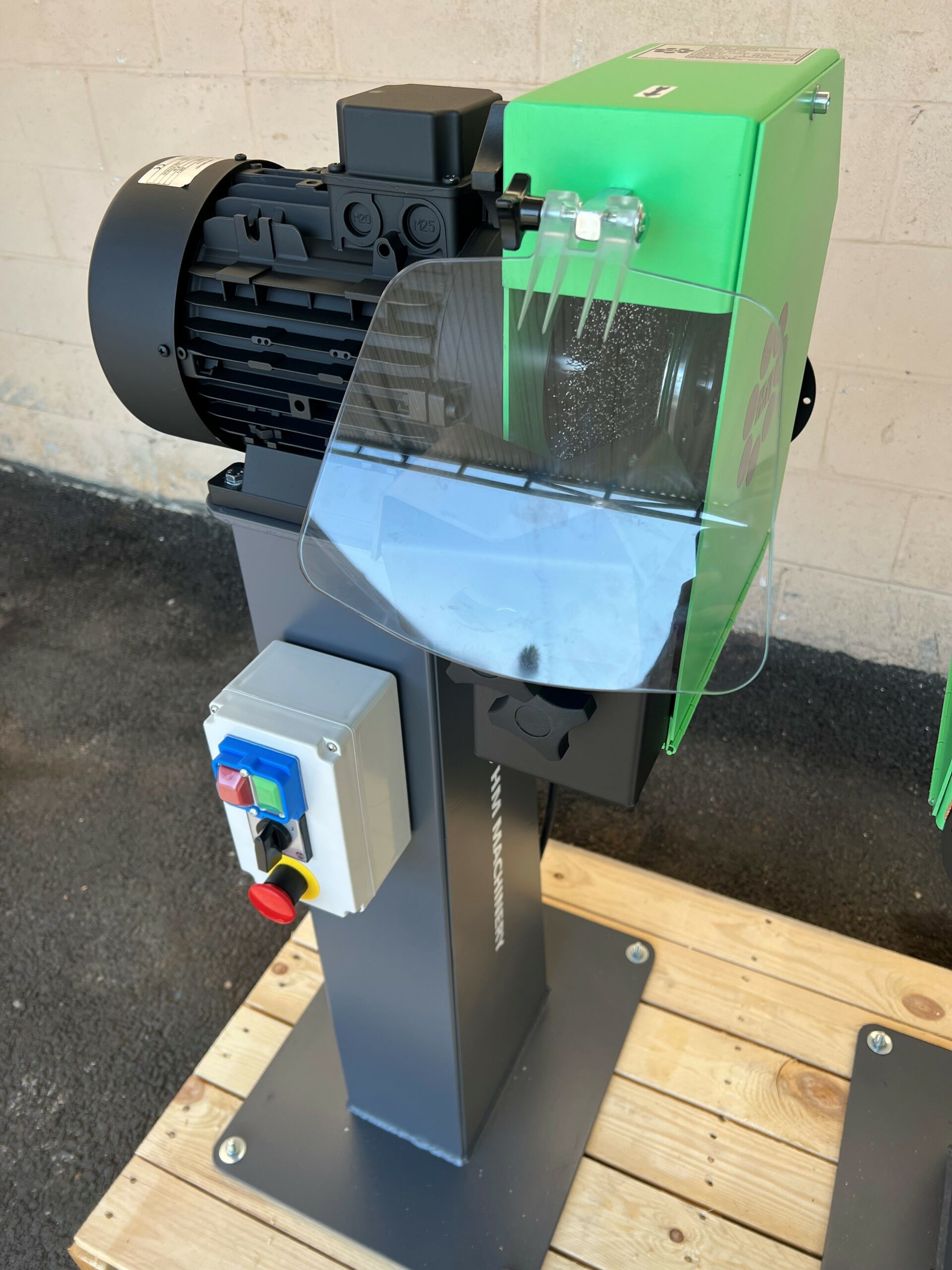

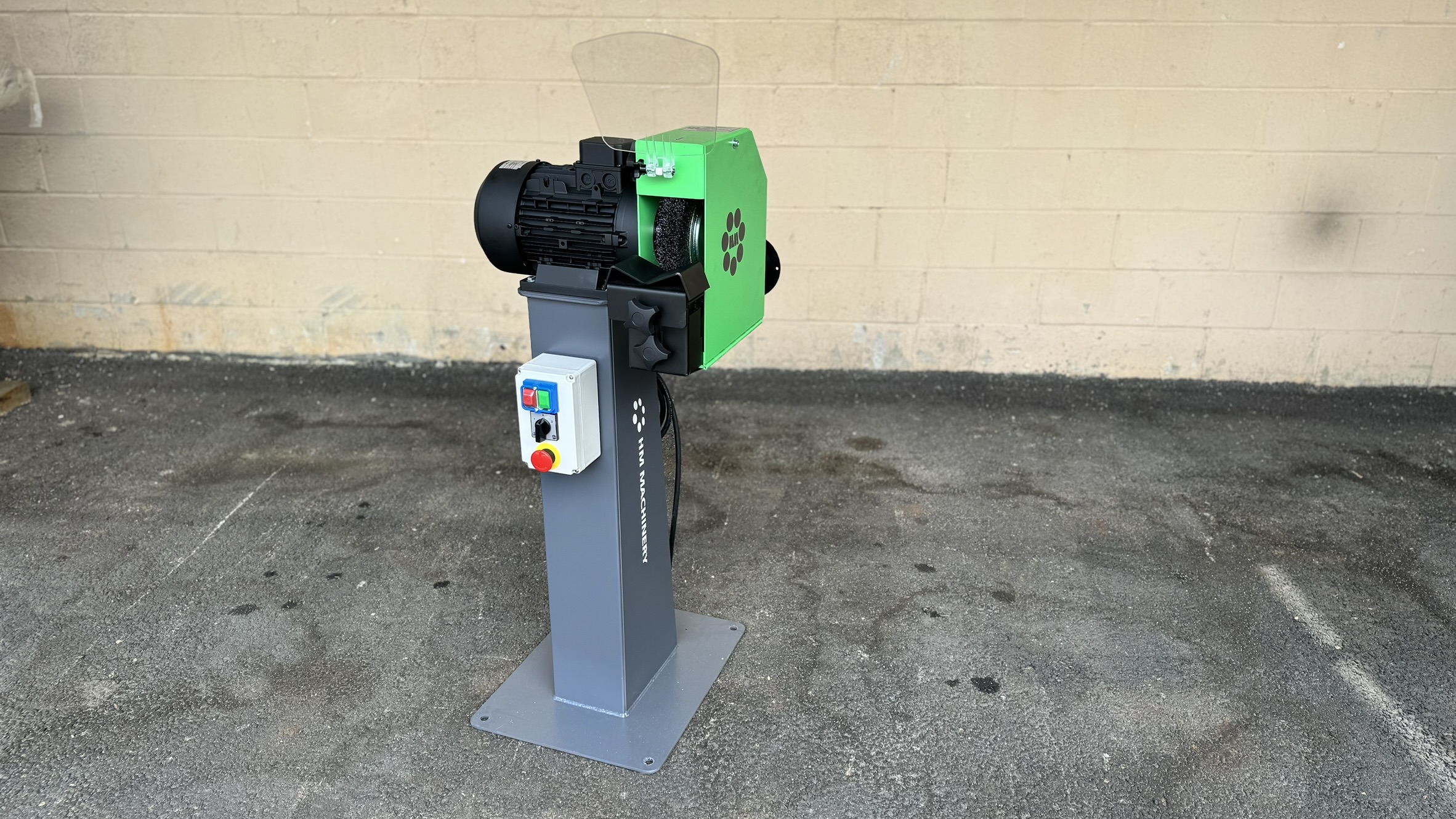

The HM Machinery ZP45 Tube Deburring Machine is a single rotary wheel design, designed for deburring the inside and outside of a tube simultaneously. The ZP45 utilizes a wire wheel to debur most ferrous and nonferrous metals.

Product Description


Features & Benefits:

  • 2 speed motor, spins the wire wheels between 1400 and 3300 RPM, depending on operator or material needs.
  • Adjustable height and fore/aft wheel position to dial in ergonomics for the user.
  • Adjustable material support to accommodate various tube sizes and profiles.
  • Adjustable shield above the work surface to ensure operator safety.
  • Outlet at the rear of the machine to capture dust and debris.

Specifications:

  • Wire Wheel: 10" Diameter, 1.75" Wide
  • Motor: 4HP, 2800/3300 RPM
  • Wiring: 3 phase, 400V, 50hz
  • Dimensions: 18"W x 17"L x 46"H
  • Shipping Weight: 165lbs
