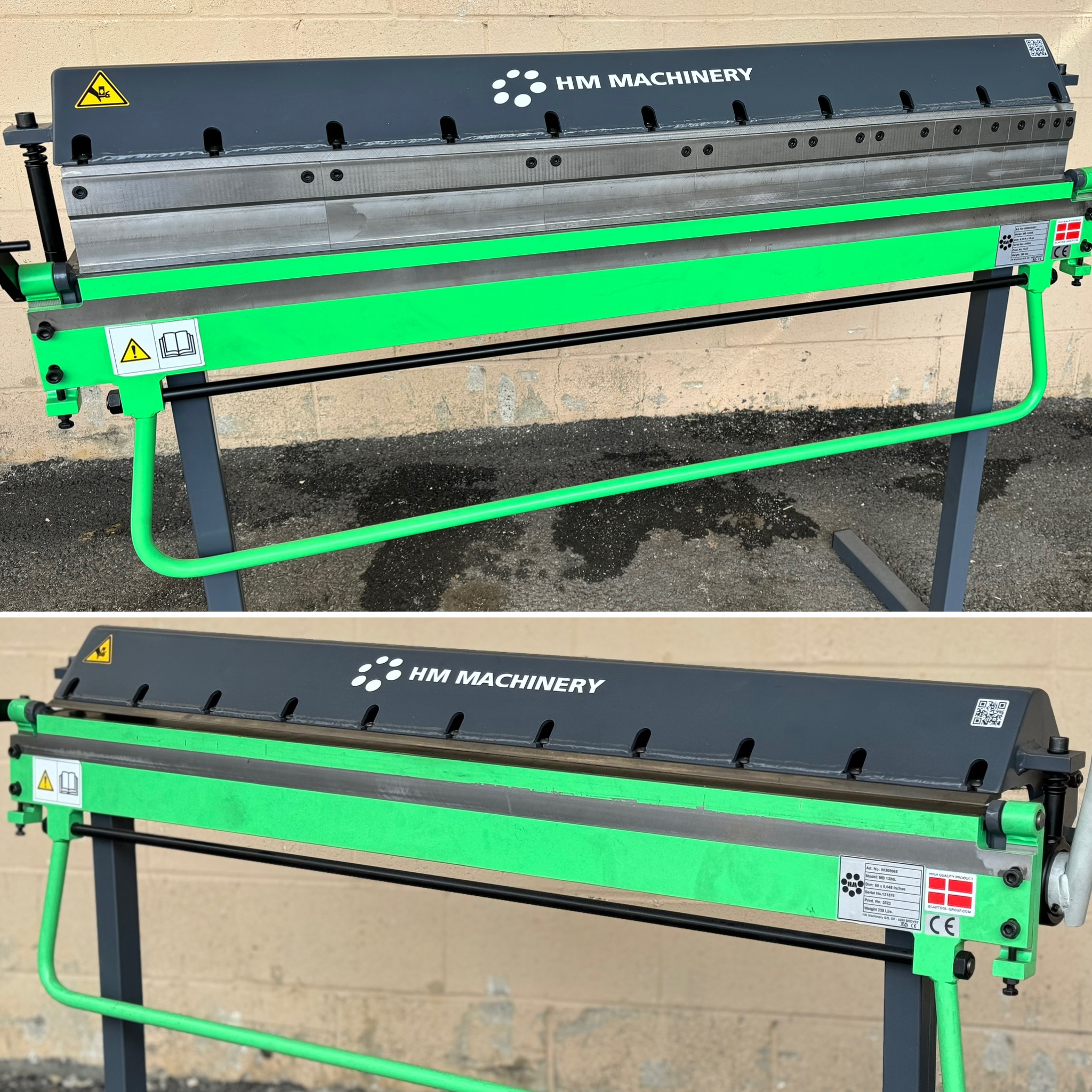

HM Machinery 1300 2n1 Combo Brake

$2,100.00

The HM Machinery 1300 2n1 Combo Brake is the perfect way to get maximum versatility in a manual brake. This combo package includes 2 different interchangeable tooling sections that can be easily swapped:

  • Low Beam Straight Nose Bar for straight bends up to 135 degrees
  • Segmented Tall Nose Bar for box and pan and other complex bends

To further increase its versatility, contact us when purchasing to add these optional accessories:

Product Description

Watch the video to learn about swapping tooling and optional accessories available for the 1300 2n1 Combo Brake:

Specifications:

  • Maximum Bend Length: 53”
  • Maximum Material Capacity: 20-Gauge Mild Steel
  • Maximum Opening (straight tooling): 1.5”
  • Maximum Box/Pan Height (segmented tooling): 2.75”
  • Maximum Folding Angle: 135 Degrees (straight tooling), 95 Degrees (segmented tooling)
  • Approx. Shipping Dimensions: 60” x 20” x 42”
  • Approx. Shipping Weight: 275lbs.
