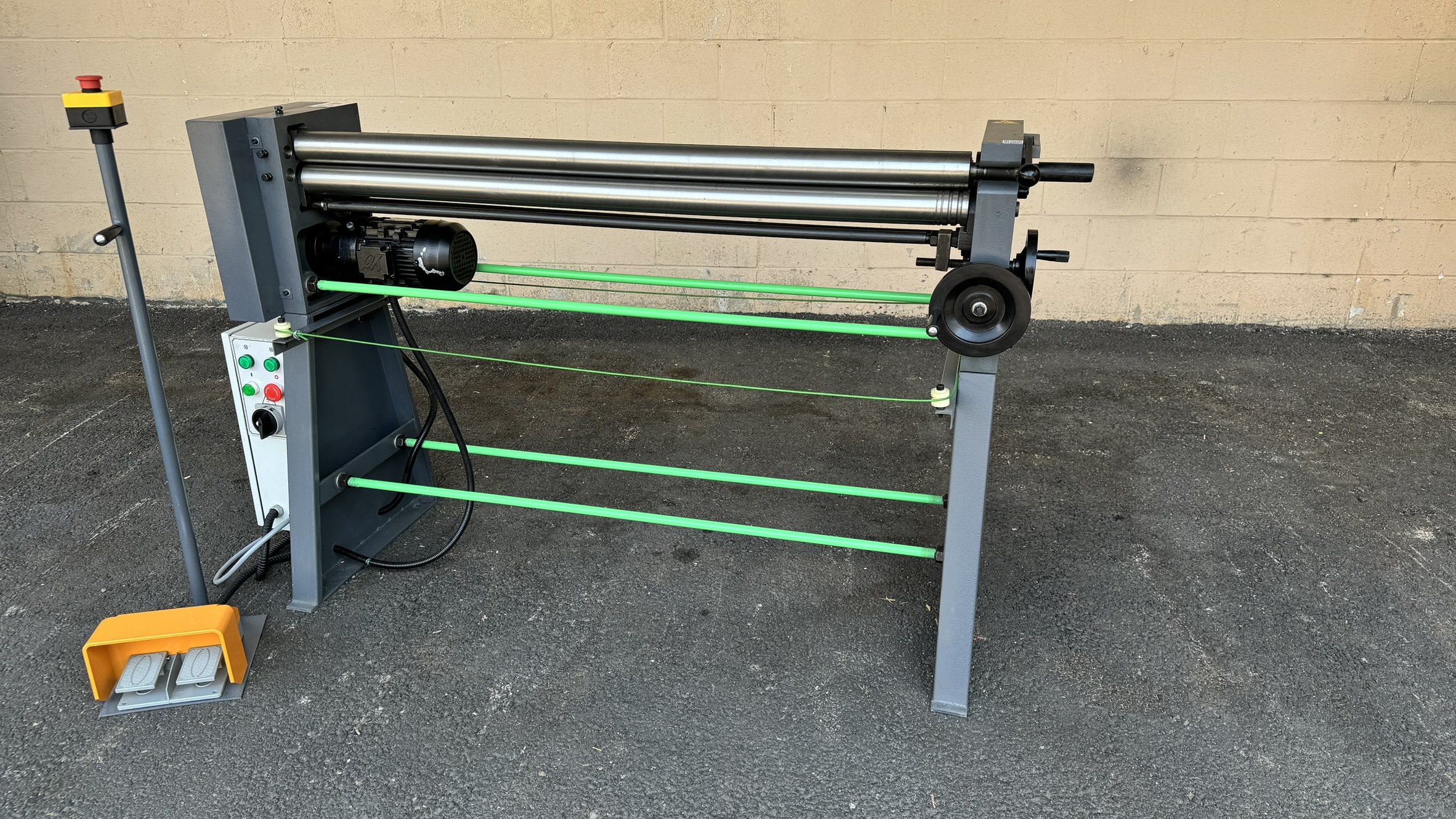

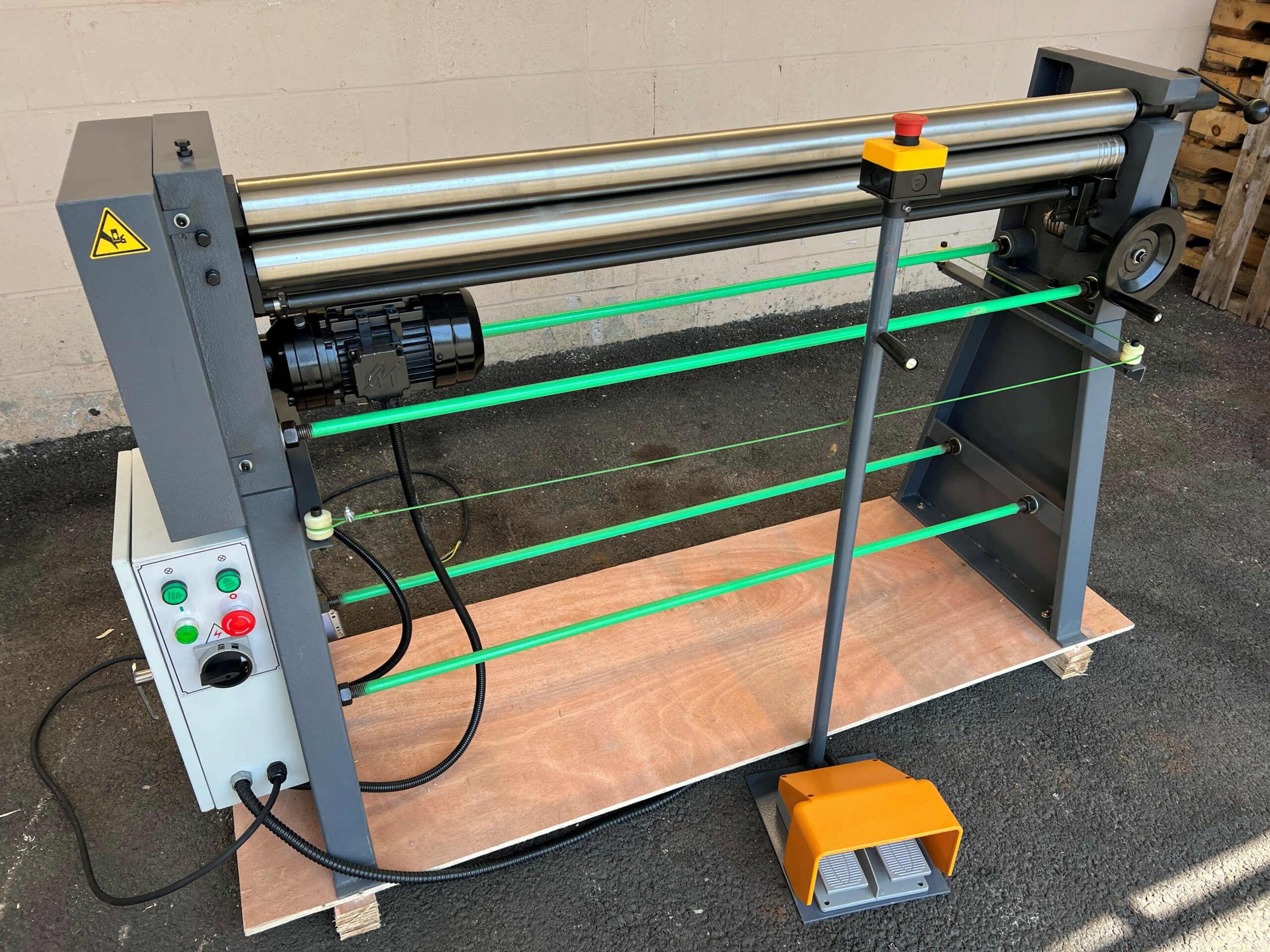

HM Machinery TTE 1848 Power Slip Roll (18ga x 48”)

$3,600.00

The HM Machinery TTE 1848 Power Slip Roll (18ga x 48”) has asymmetric rolls and adjustable roller speed, making pre-bending easy and accurate.

The rolls are crowned for the straight rolling pinch. Both the lower roll and bending roll are easily adjusted by a worm-gear handle.
The lower and rear roller come standard with fire groove for rolling wire profiles.

The TTE comes as standard with a 0.75 KW brake motor, inverter, forward/backwards foot pedal fitted with an emergency stop.

Product Description


Specifications:

  • Maximum Material Width: 50”
  • Maximum Material Capacity: 18-Gauge Mild Steel
  • Roller Diameter: 2.4"/60mm
  • Minimum Bending Diameter: 3.5"/90mm
  • Approx. Shipping Dimensions: 67” x 22” x 40”
  • Approx. Shipping Weight: 620lbs.
