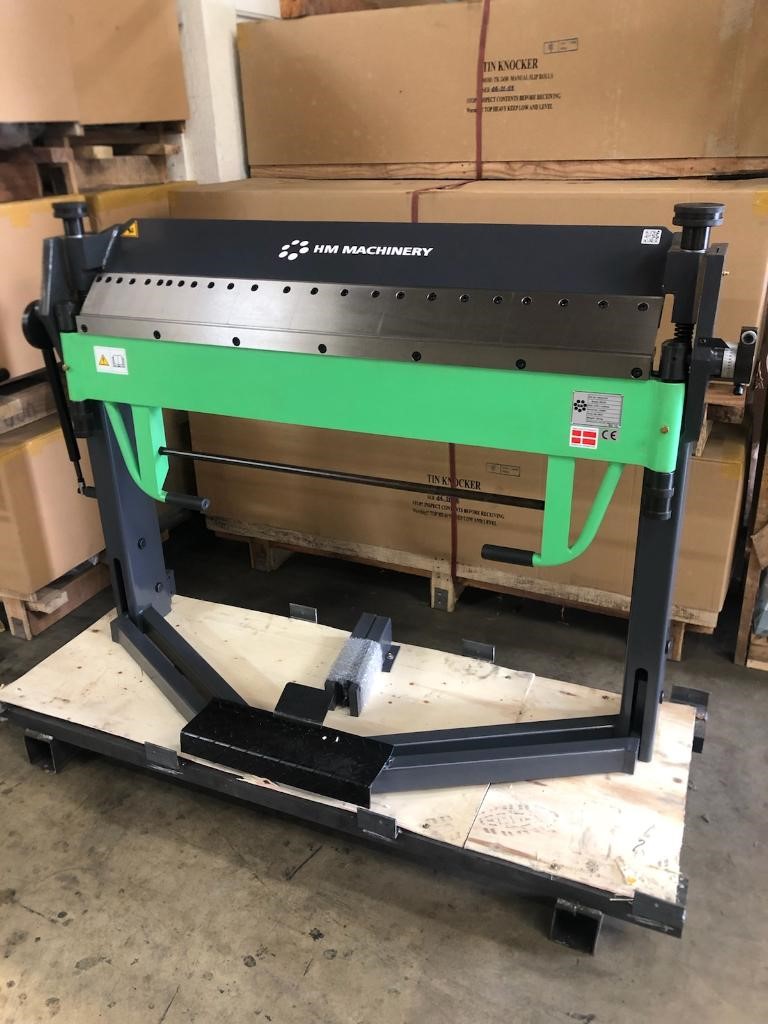

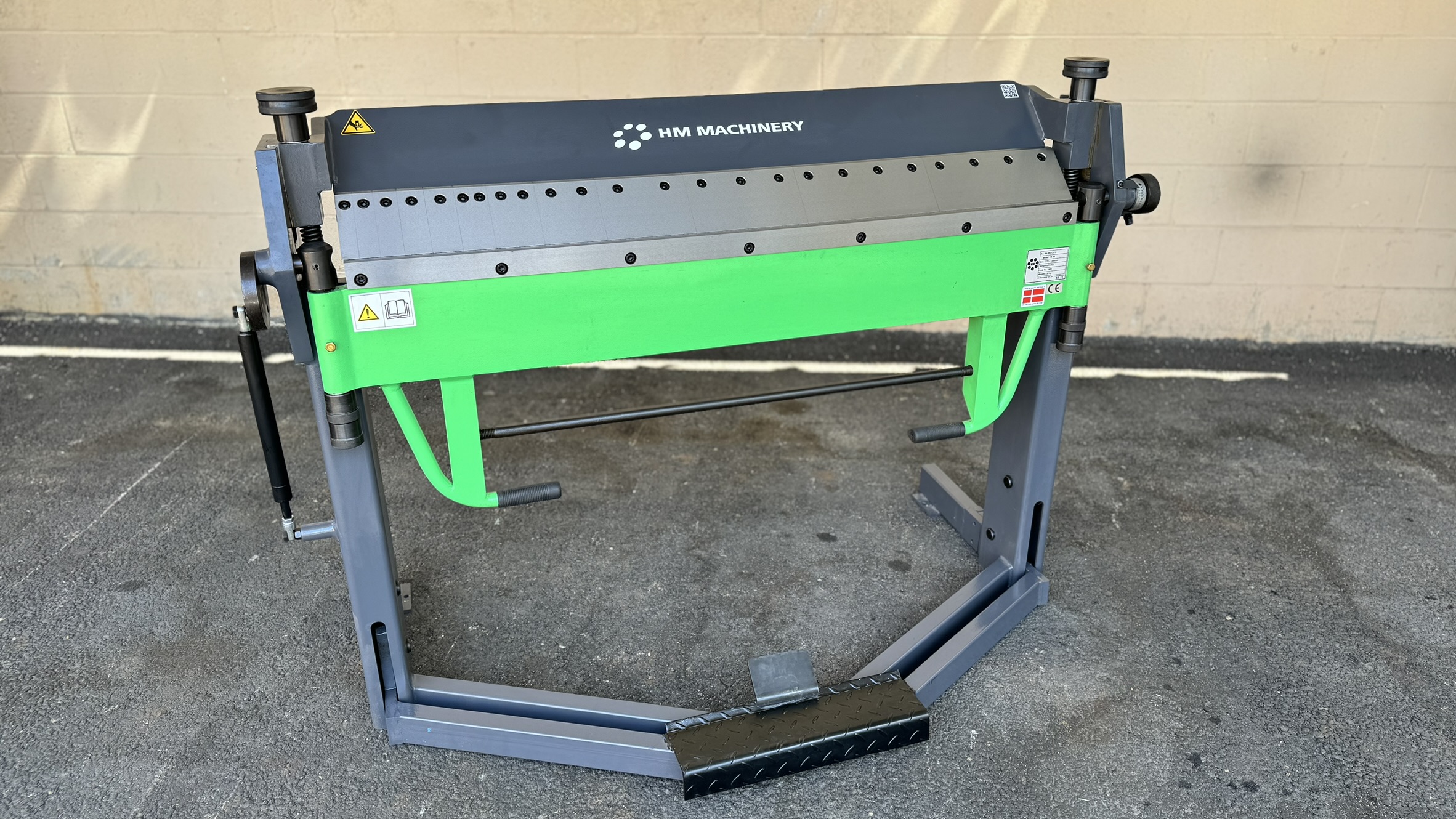

Product Description
Features and Benefits:
- Precision ground tooling creates straight, clean bends every time.
- Equipped with 13 segments of angled tooling on both top and bottom bending surfaces.
- Cross-driven clamping allows easy consistent material positioning.
- Repeat angle stop enables easily repeatable bends.
- The lift handle is ergonomically designed and operable from either side of the machine, allowing flexibility while fabricating complex shapes and profiles.
Specifications:
- Maximum Bend Length: 50”
- Maximum Material Capacity: 14-Gauge Mild Steel
- Maximum Opening: 1.78”
- Maximum Folding Angle: 135 Degrees
- Approx. Shipping Dimensions: 66” x 42” x 48”
- Approx. Shipping Weight: 725lbs.
