HM Machinery HS-3S-3SH 4ft x 12 ga Universal Manual Brake

HM Machinery HS-3S-3SH 4ft x 12 ga Universal Manual Brake

$9,590.00

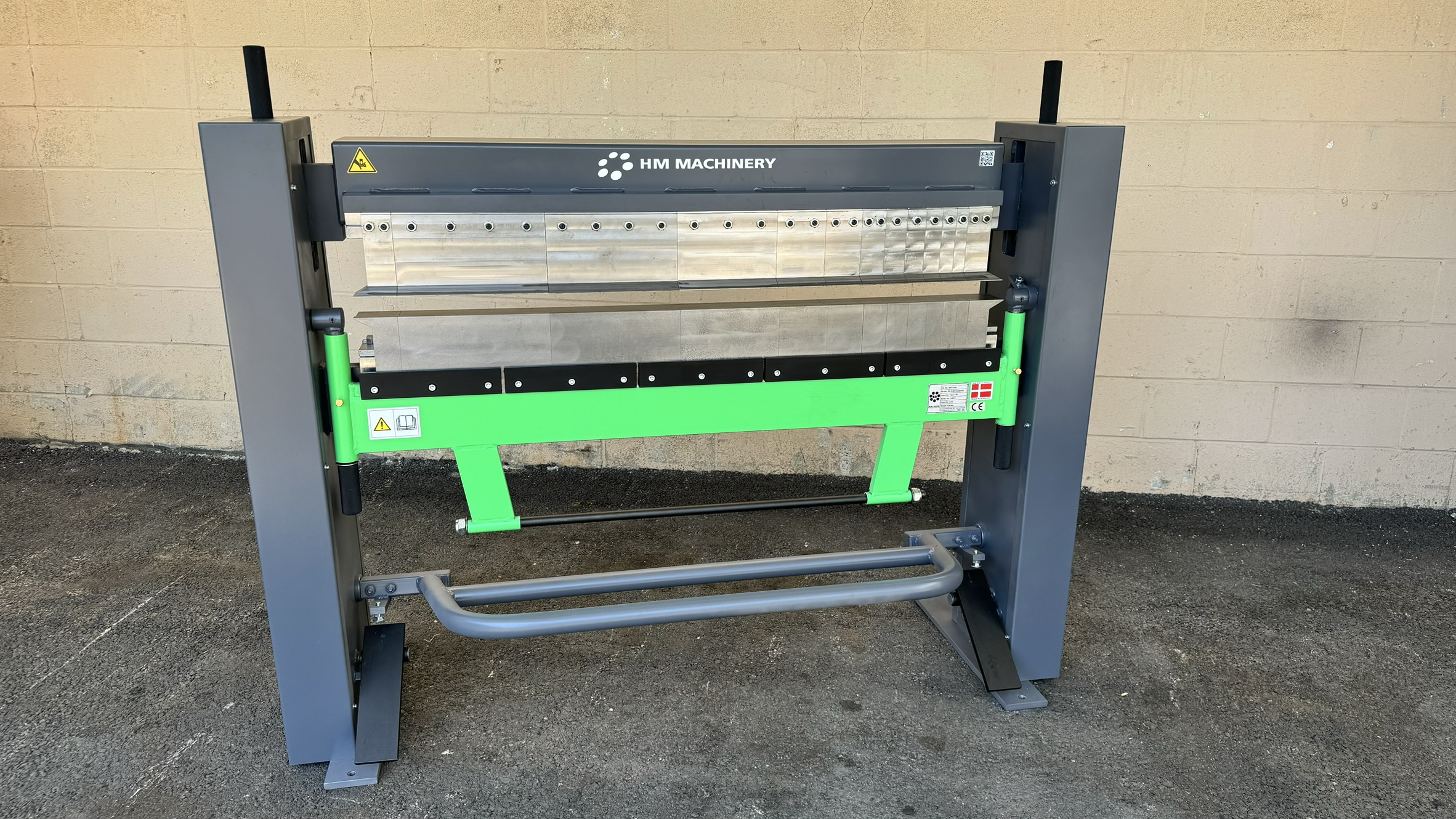

The HS-3S-3SH Universal Manual Brake is a 50 inch, 12 gauge universal brake with segmented top and bottom bending surfaces. The HS-3S-3SH brake allows bending in inverse directions, enabling special profiles, such as boxes and pans, to be formed.

HM Machinery Superflex machines are heavy duty, with fully welded construction. Foot-operated control of the clamp bar ensures extremely fast and simple operation and allows both hands to be kept free for adjustment of the material being folded.

Categories: ,

Product Description

Features and Benefits:
  • Precision ground tooling creates straight, clean bends every time.
  • Equipped with 13 segments of tooling on both top and bottom bending surfaces.
  • Precise material positioning is made possible with a foot-operated clamping mechanism, allowing the operator to use both hands to handle and position material
  • Repeat angle stop enables easily repeatable bends.
  • The lift handle is ergonomically designed and operable from either side of the machine, allowing flexibility while fabricating complex shapes and profiles.
Specifications:
  • Maximum Bend Length: 50”
  • Maximum Material Capacity: 12 Gauge Mild Steel
  • Maximum Opening: 1.78”
  • Maximum Folding Angle: 100-150 Degrees (depending on profile)
  • Approx. Shipping Dimensions: 63”W x 36”D x 50”H
  • Approx. Shipping Weight: 915 lbs.
