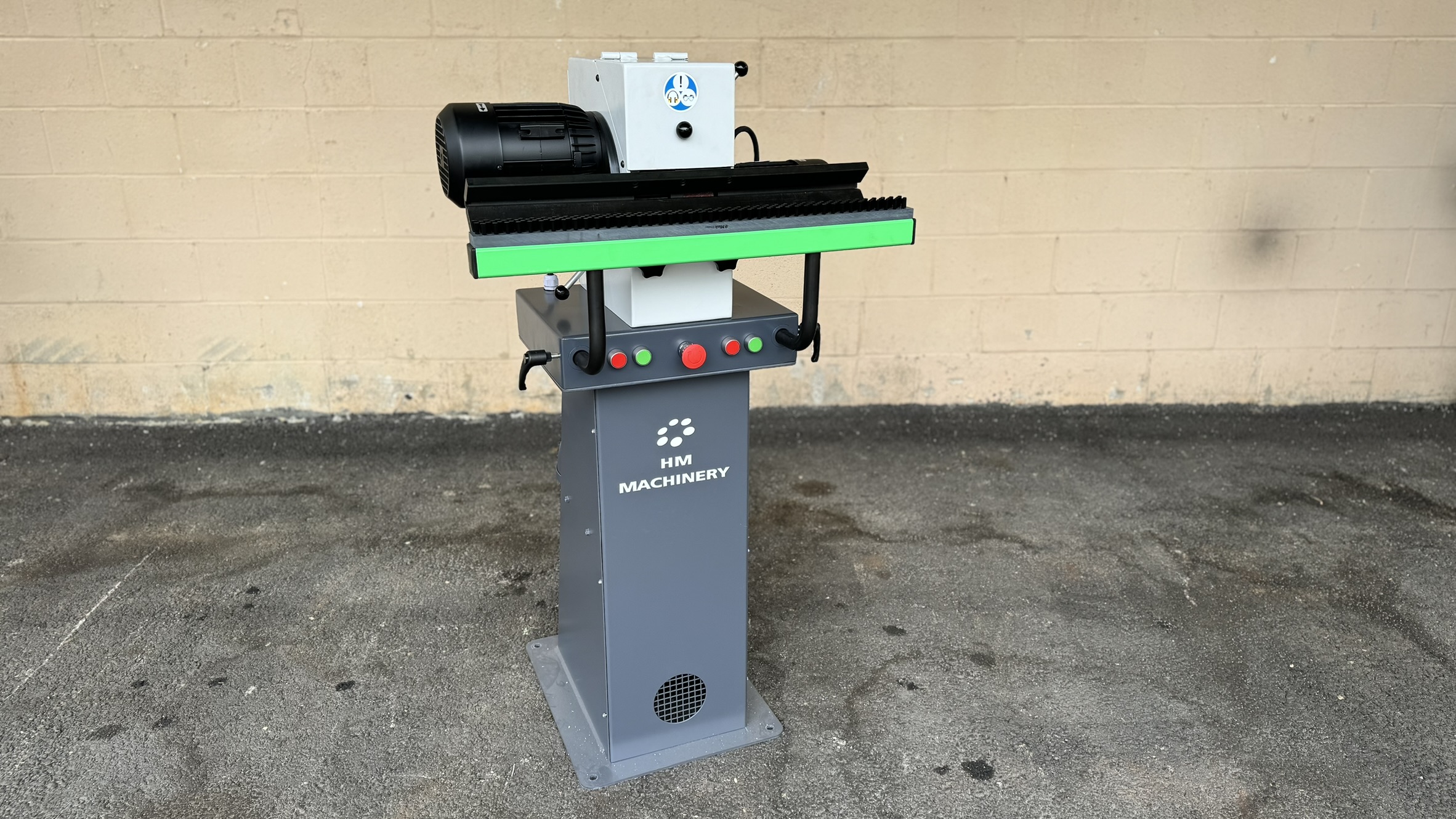

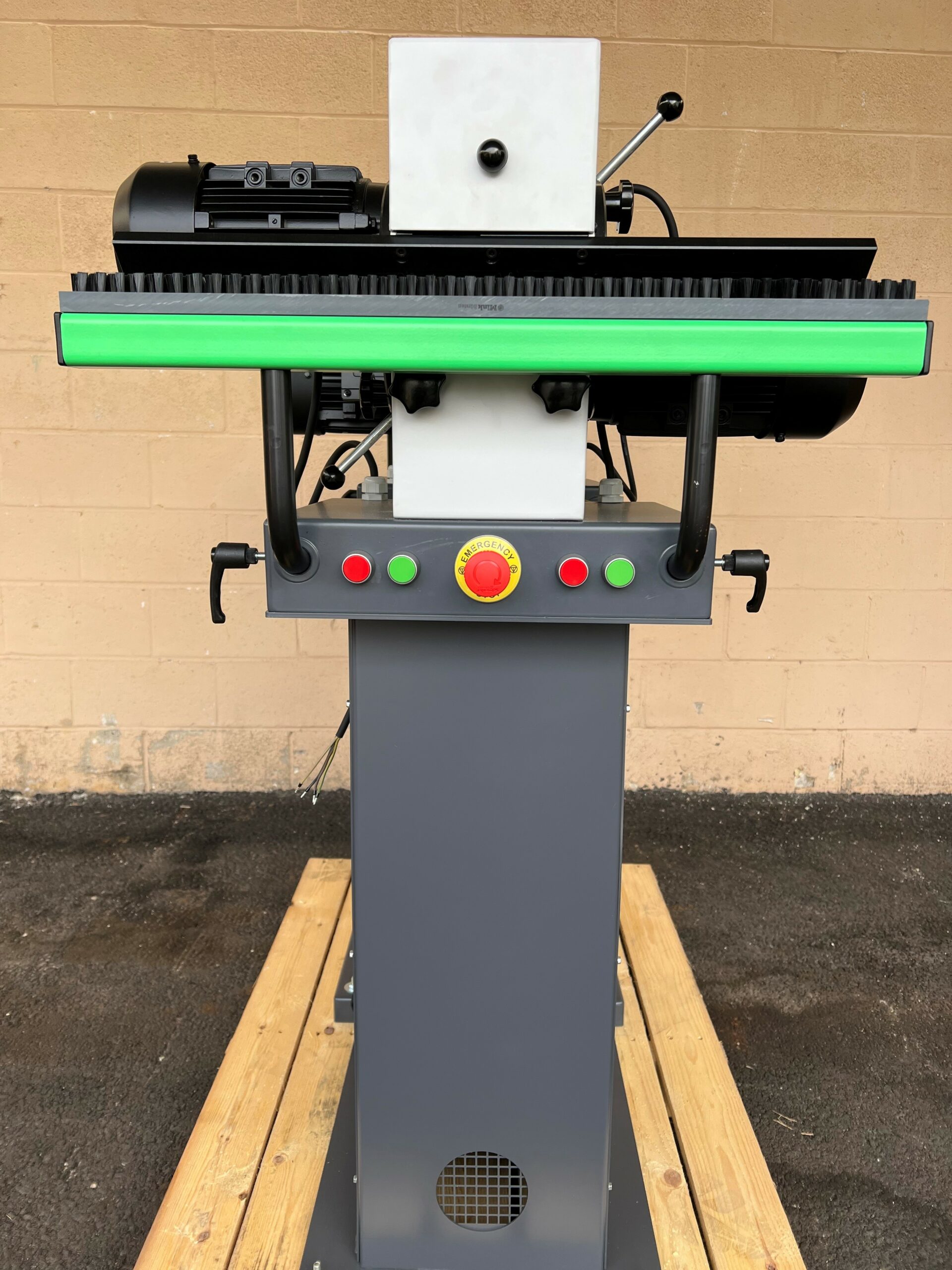

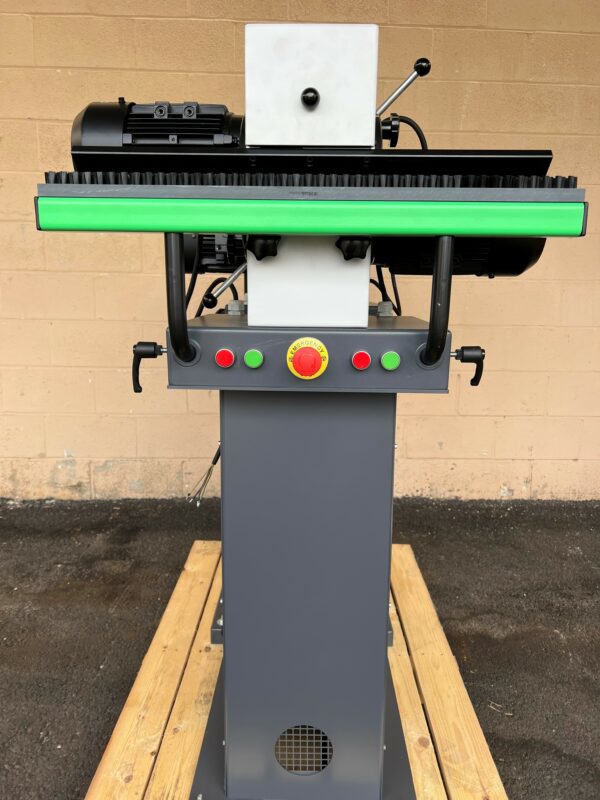

HM Machinery ZA250X Sheet Deburring Machine (w/Dust Extractor)

$4,850.00

The HM Machinery ZA250X Sheet Deburring Machine is a dual wheel design, with integrated dust extraction, designed for deburring the edges of sheet or plate metal up to 10mm or 3/8” thick. The ZA250X utilizes abrasive flap wheels to debur most ferrous and nonferrous materials, including mild steel, aluminium, stainless steel, copper, and brass.

Product Description


Features & Benefits:

  • Dual motors which rotate in opposite directions, and can debur either one edge, or both edges simultaneously with the 60 grit flap wheels.
  • The adjustable material support accommodates a wide range of sheet sizes, allowing flexibility for different projects or fabrication needs.
  • The top cover of the machine can be opened to grind or finish flat surfaces in addition to edge deburring.
  • The motors have adjustable positioning, which allows the operator keeps the flap wheels in a consistent position as they wear over time.
  • An integrated dust extraction system reduces dust and debris during deburring, and debris is collected in an easily emptied bag at the rear of the machine.

Specifications:

  • Material Capacity: 10mm or 3/8" ferrous and non-ferrous sheet metal
  • Flap Wheels: 2"/60 grit
  • Motor: 3/4 HP, 1400-1700 RPM
  • Wiring: 3 phase, 230V, 60hz
  • Dimensions: 22"W x 27"L x 50"H
  • Shipping Weight: 155lbs
