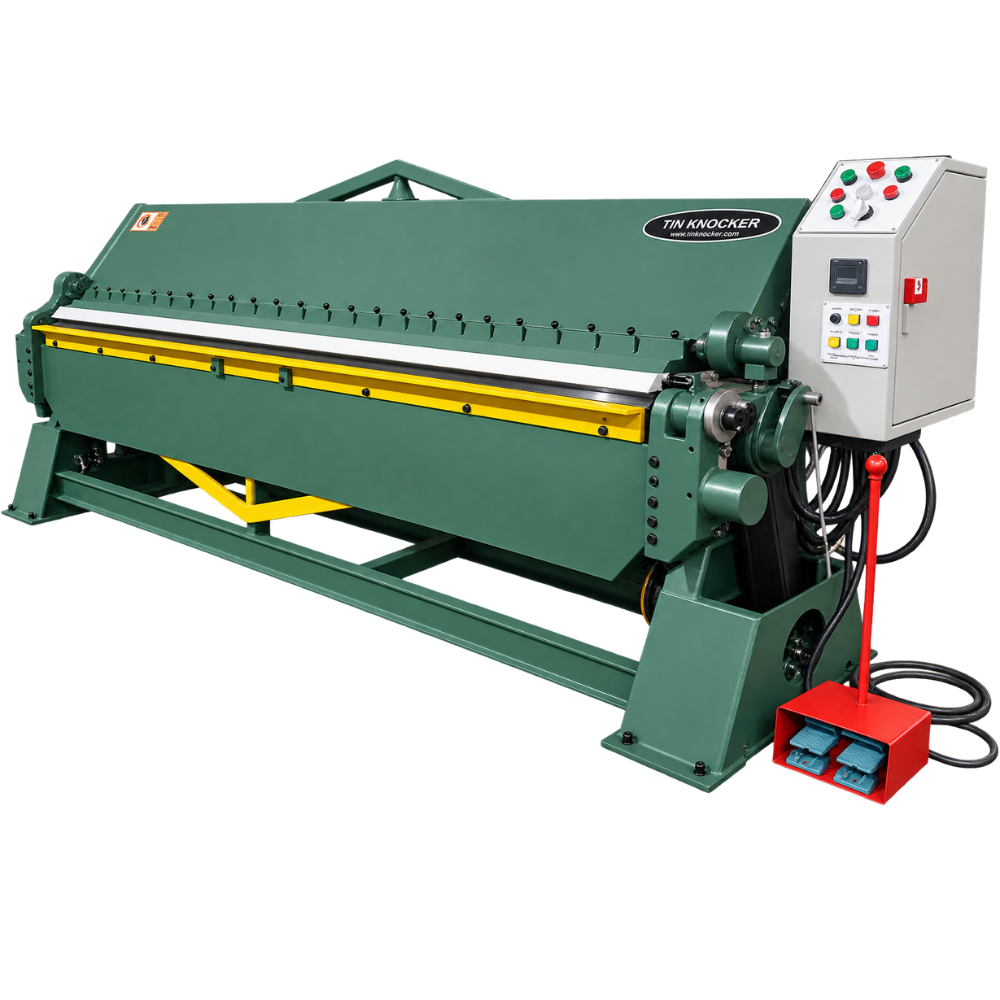

TK 1014 Hydraulic Brake

$28,500.00

The Tin Knocker 1014 Hydraulic Brake brings power, strength and repeatability to any shop. It works as either a box and pan (finger) brake or a straight brake, with an attachable straight nose bar included, and bends up to 14 gauge (2 mm) mild steel at 10 feet.

An electric foot switch clamps and unclamps the top leaf, freeing the operator to load and unload material, and the bend angle dial delivers consistent, repeatable bends. Built for both manufacturing and maintenance environments, the 1014 is a reliable, heavy-duty addition to any metal-forming operation.

Categories: ,
Specifications:
  • Max Bending Length: 120"
  • Number and Width of Fingers: 6-3", 10-4", 10-5", 2-6"
  • Maximum Thickness: 14-gauge mild steel
  • Electrical: 3HP, 3PH, 230V, 15A
  • Dimensions: Approx. 150" x 48" x 57"
  • Shipping Weight: 5,500 lbs.
Standard Equipment:
  • Removable straight nose bar and 28 box and pan fingers (hardened tooling)
  • Bolted bottom bar, angle bar and insert bar
  • Compact hydraulic power unit with direct pump and oil level sight gauge
  • Electric foot switch for clamping
  • Back gauge with inch/cm scales and sheet support rods
Controls & Adjustments:
  • Bend angle dial with limit switch for repeatable bends
  • Material thickness dial for faster clamp pressure setup
  • Adjustable clamp pressure with mechanical overlock
  • Adjustable top leaf open height
  • Two-position bending leaf angle bar
  • Control panel: key switch, leaf up/down, clamp/unclamp, motor start, auto cycle and emergency stop
