- Material Capacity: 24 to 30 gauge mild steel
- Roll Diameter: 3 to 14 inches
- Collar Width: 3 or 6 inches
- Fabrication Speed: 30 feet per minute
- Motor: 1.5 HP, single phase, 115V, 1716 RPM
- Dimensions: 49"H x 24"W x 26"D
- Shipping Weight: 350lbs
TK No. 24 Collar Maker
$5,850.00

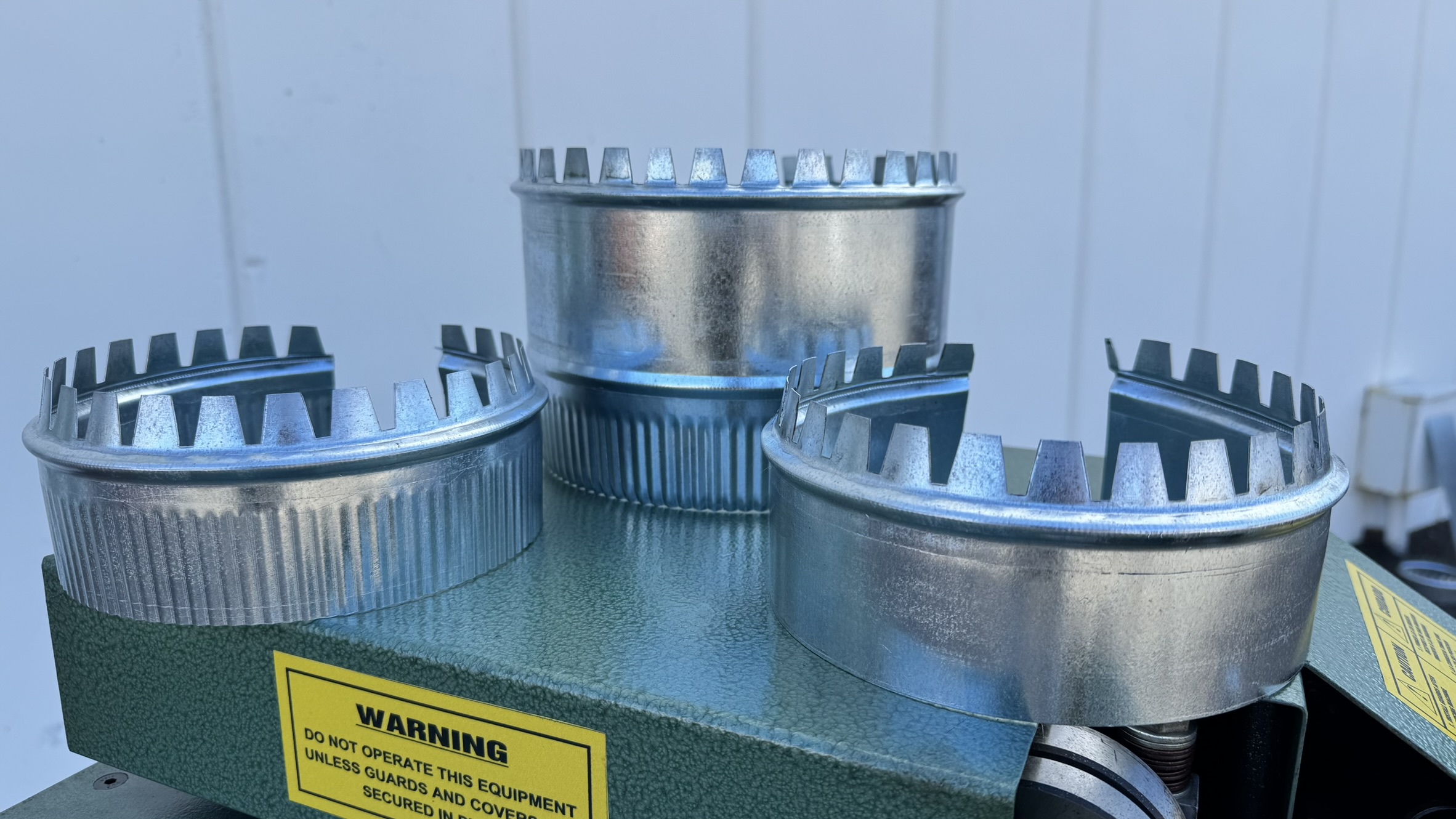

The Tin Knocker No. 24 Collar Maker efficiently produces 3 inch to 14 inch collars in seconds, significantly improving the efficiency of any shop. The collar maker can use 3 or 6 inch width metal with a quick adjustment of the material guide.
The number 24 collar maker can notch, crimp, bead and roll 24 to 30 gauge sheetmetal in multiple widths and diameters, adding valuable capability for fabricators. This flexibility also allows the use of scrap metal to fabricate collars, reducing waste.
Specifications:
