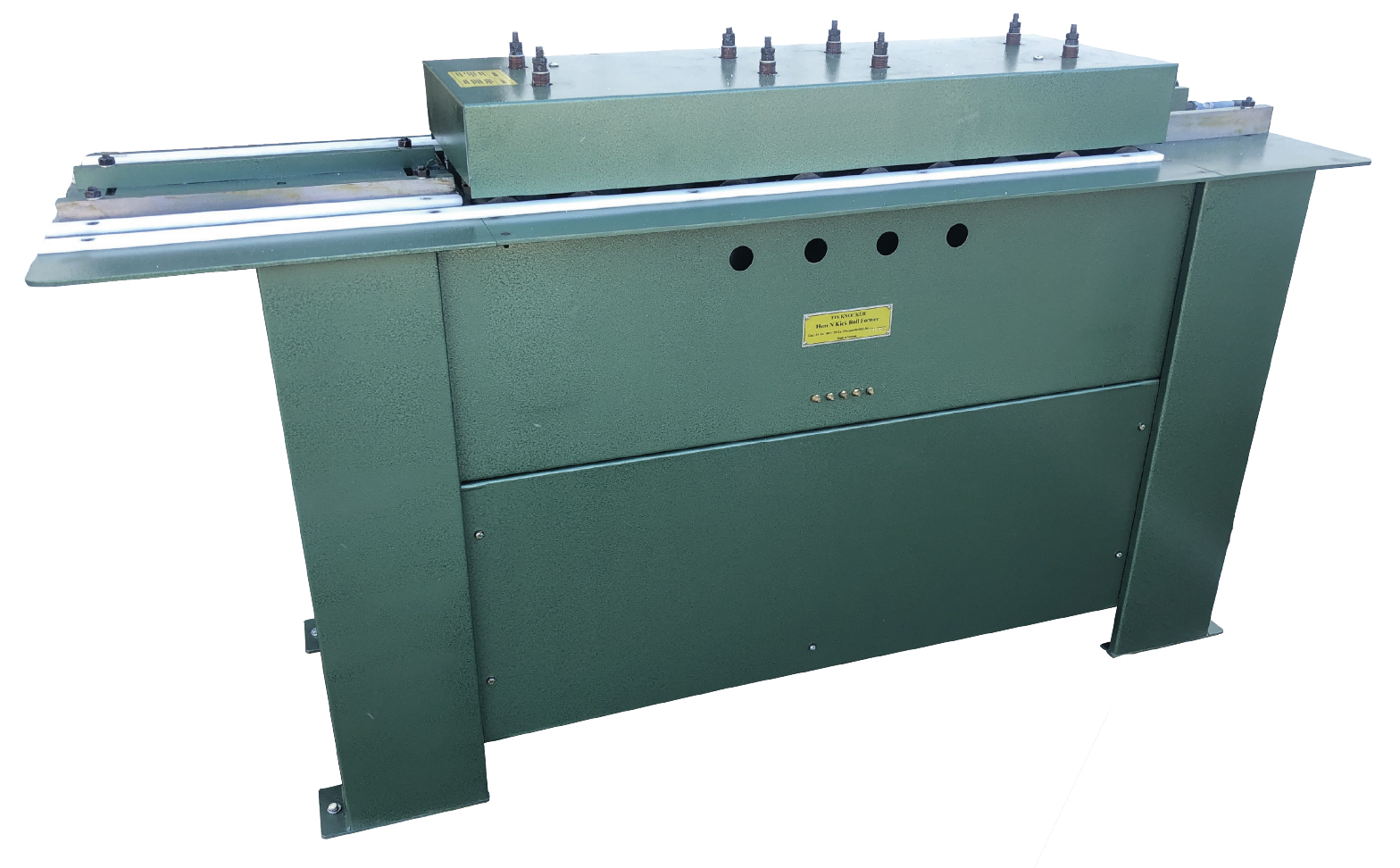

TK Hem & Kick Roll Former

This machine is standard equipped with no tooling in the center position and (2) sets of outboard shafts equipped with;

  • ½” x 180-degree hem rolls for 20-26ga (right side)
  • ½ Hem with 5/8” Kick Rolls (left side)

SeeTK Hem & Kick Manual.

Categories: ,

Product Description

Specifications:

  • Speed: 90 feet per minute
  • Motor: 5 HP 230/460/3/60/1800 RPM
  • Drive: Matched Double Vee Belt
  • Base: Arc Welded Steel. Heavy top plate.
  • Dimensions: 68” long, 24” wide, 48” high
  • Feed table height: 34 5/8”
  • Shipping Weight: Approximately 1050 lbs.
