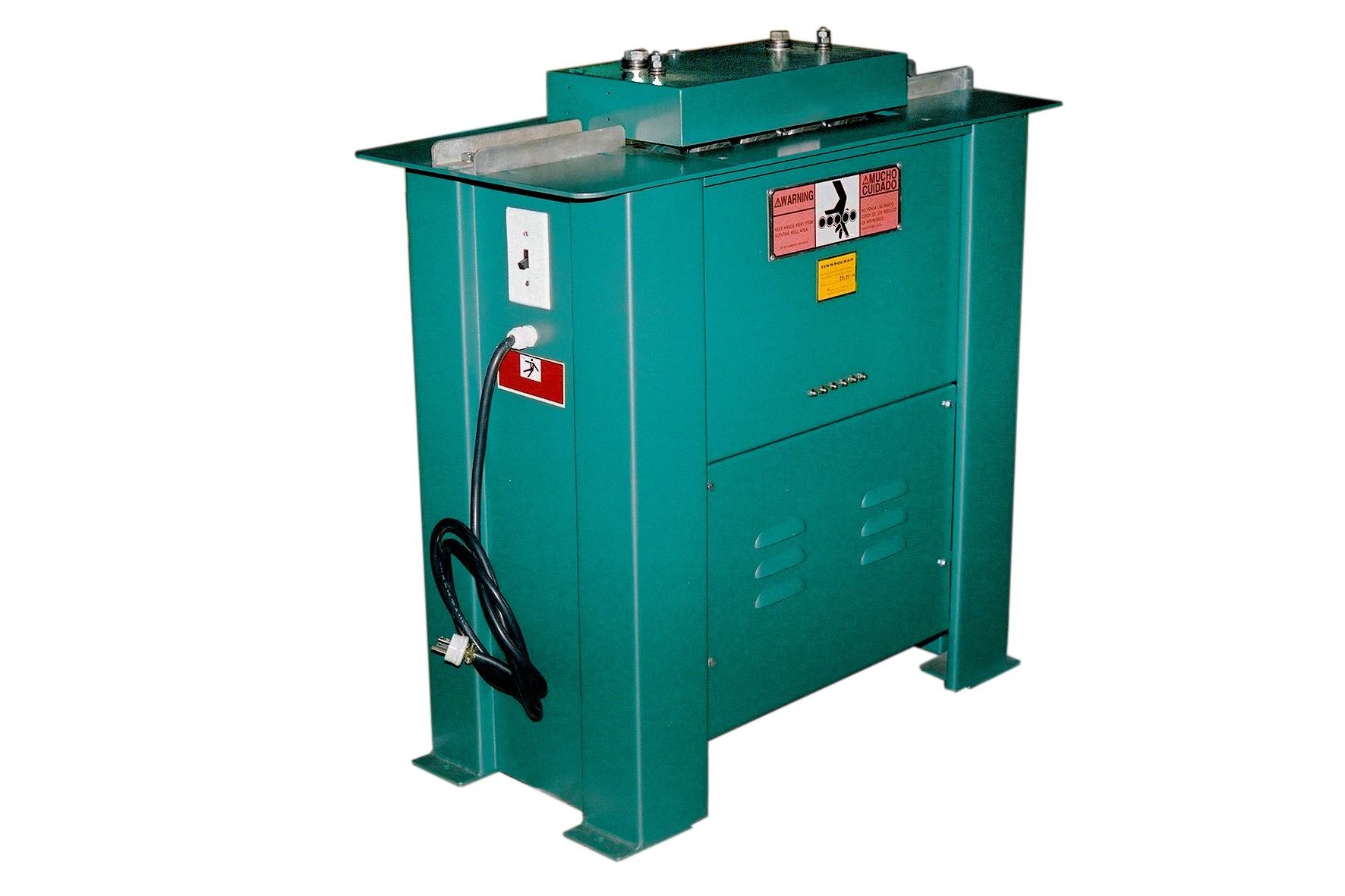

TK 20 Ga. Pitts. (With Choice of Drive Cleat or Acme Rolls)


A workhorse! The heart of any HVAC sheet metal shop.  This 5 station 20 Gauge Pittsburgh lock roll former is offered with choice of Drive Cleat or Acme Rolls on the other outboard side. Powered by a 1 HP motor with V-belt drive, this machine is built for dependability.

In stock and available from your local distributor.

See 20 GA Pittsburgh Manual.

Fits on your Lockformer!
Optional Flanging Attachment for
TK 20 Ga. Pittsburgh Roll Former

Categories: ,

Product Description


  • Weight: 360 lbs. (136kg
  • Dimensions: 40″L x 24″W x 44″H (1016mm x 610mm x 1118mm)
  • Capacity: 20-26 Gauge Mild Steel
  • Motor: 1 HP, 115/230 Volt, 1800 RPM
  • Depth of Pocket: 5/16″ (7.9mm)
  • Speed: Approx. 25 FPM
