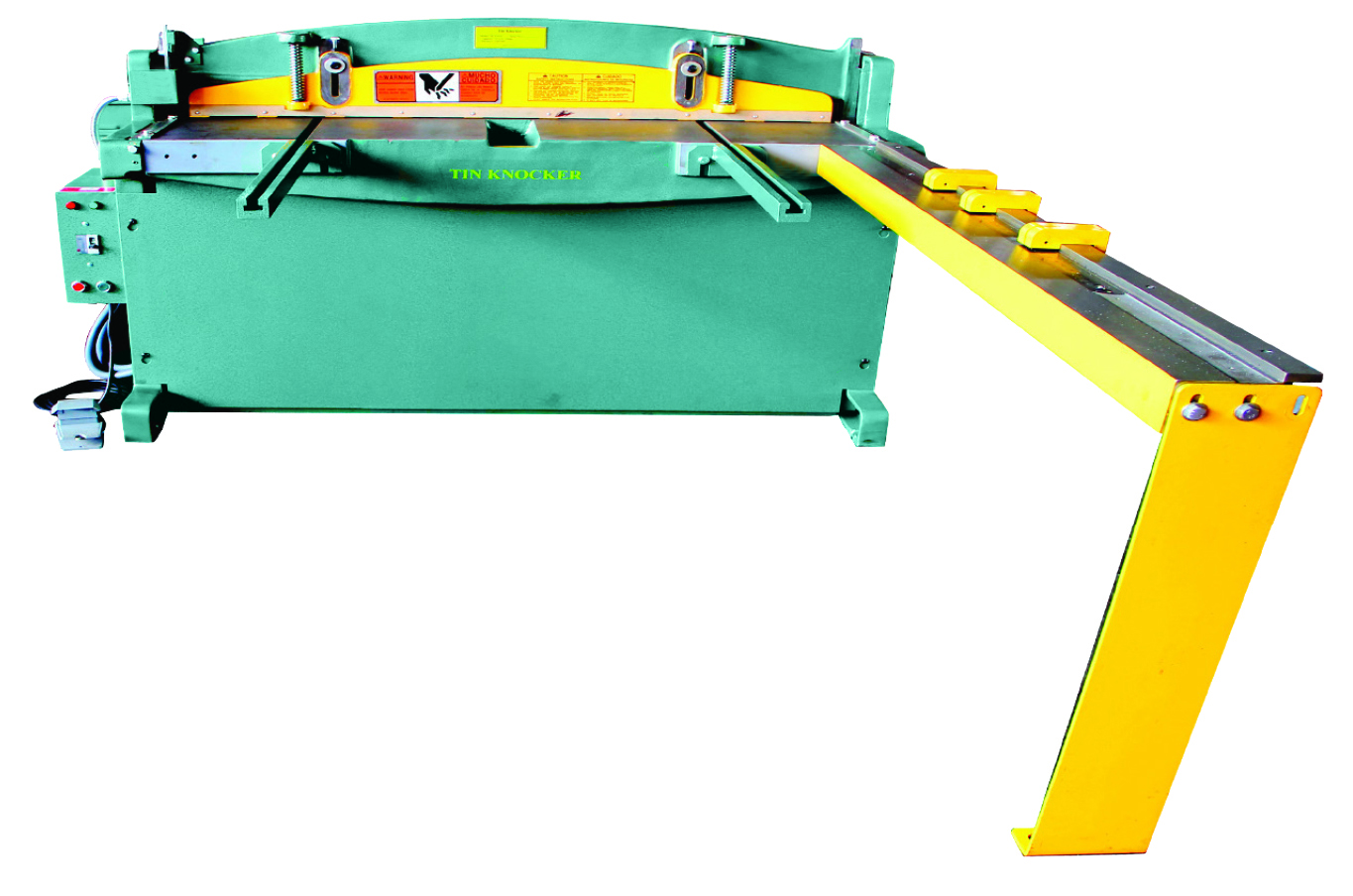

TK H1652 Hydraulic Shear

$8,250.00

The Tin Knocker power squaring shear makes shearing light gauge metal easy. The design and features make shearing accurate and efficient. This shear can accommodate 52” sheet with a maximum capacity of 16-gauge mild steel. The hydraulically powered unit features fast and smooth shearing action, rear operated parallel rack and pinion back gauge, reversible 4 ft. squaring arm with embedded scale and 3 drop stop gauges.  Also includes one shot lube system.  No one offers a 52″ x 16 gauge Hydraulic Shear with greater value.  Pay less and get more!

In stock and available from your local distributor.

SeeTK H1652 Hydraulic Shear Manual.

Categories: ,

Product Description

Specifications:

  • Weight: 1350 lbs.
  • Dimensions: 72 x 48 x 36 in.
  • Maximum shearing capacity, mild steel: 16 ga. / 1,6 mm
  • Maximum shearing capacity, stainless steel: 20 ga. / 1,0 mm
  • Maximum cutting length: 52 in. / 1320 mm
  • Back gauge range: 30 in. / 762 mm
  • Front gauge range: 37 in. / 940 mm
  • Standard motor: 3 hp. – 220 Volt/ 1 phase / 60HZ
  • Floor space, gauges in position: 66 x 76 x 42 in/ 1676 x 1930 x 1070 mm
