TK 1016 Duct Notcher (includes 5 Heads)

TK 1016 Duct Notcher (includes 5 Heads)

$7,250.00

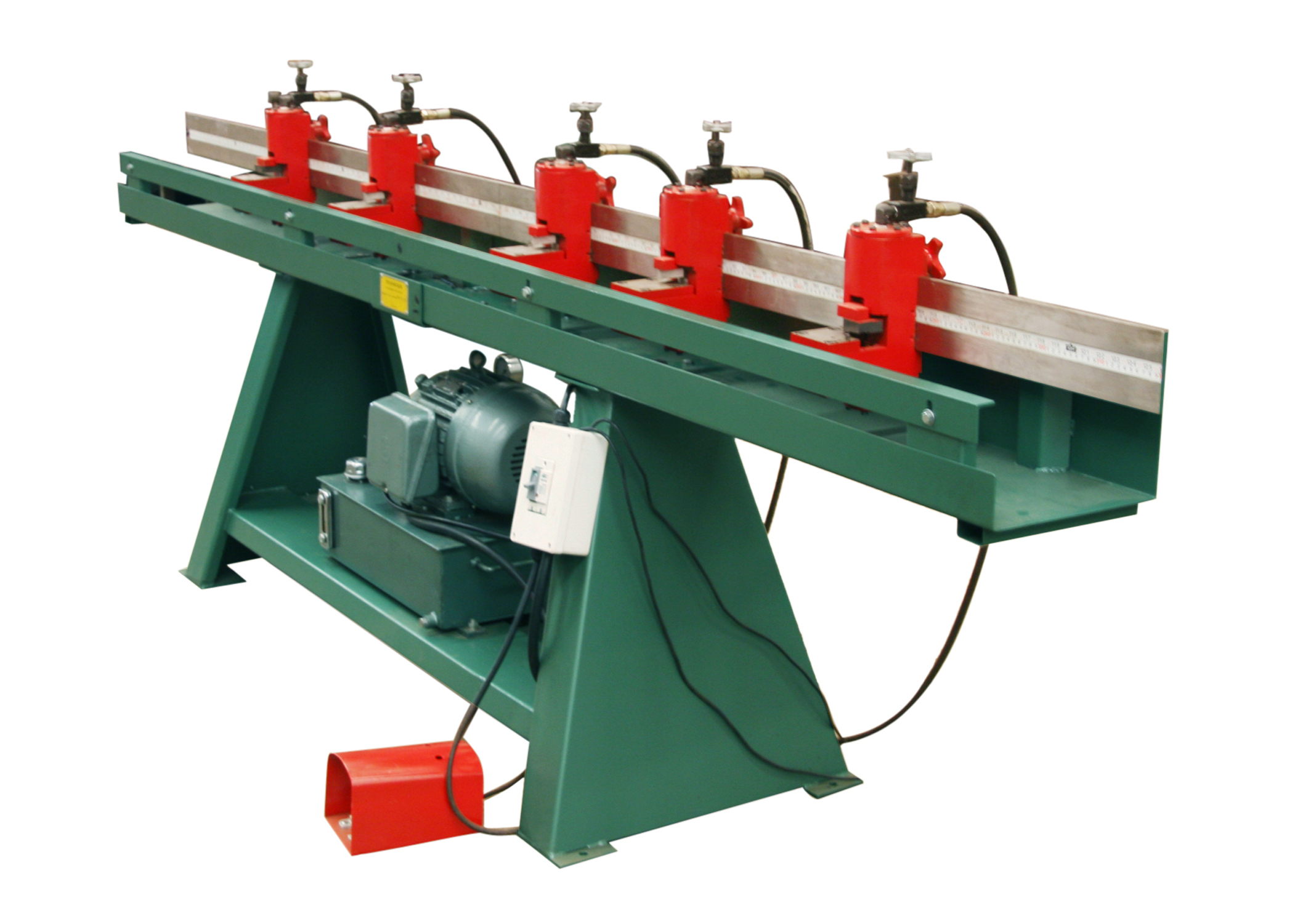

The Tin Knocker 1016 Hydraulic Duct Notcher is a heavy-duty 5-head gang notcher, designed to make notching easy, efficient, and accurate. It allows fabricators to gang-notch sheet metal hydraulically up to 6x faster than by hand, without layout or scribing. With the different available heads (see ‘More Information’ tab below for details), it can be used to create S & Drive, TDC, or TDF notches for duct connection.

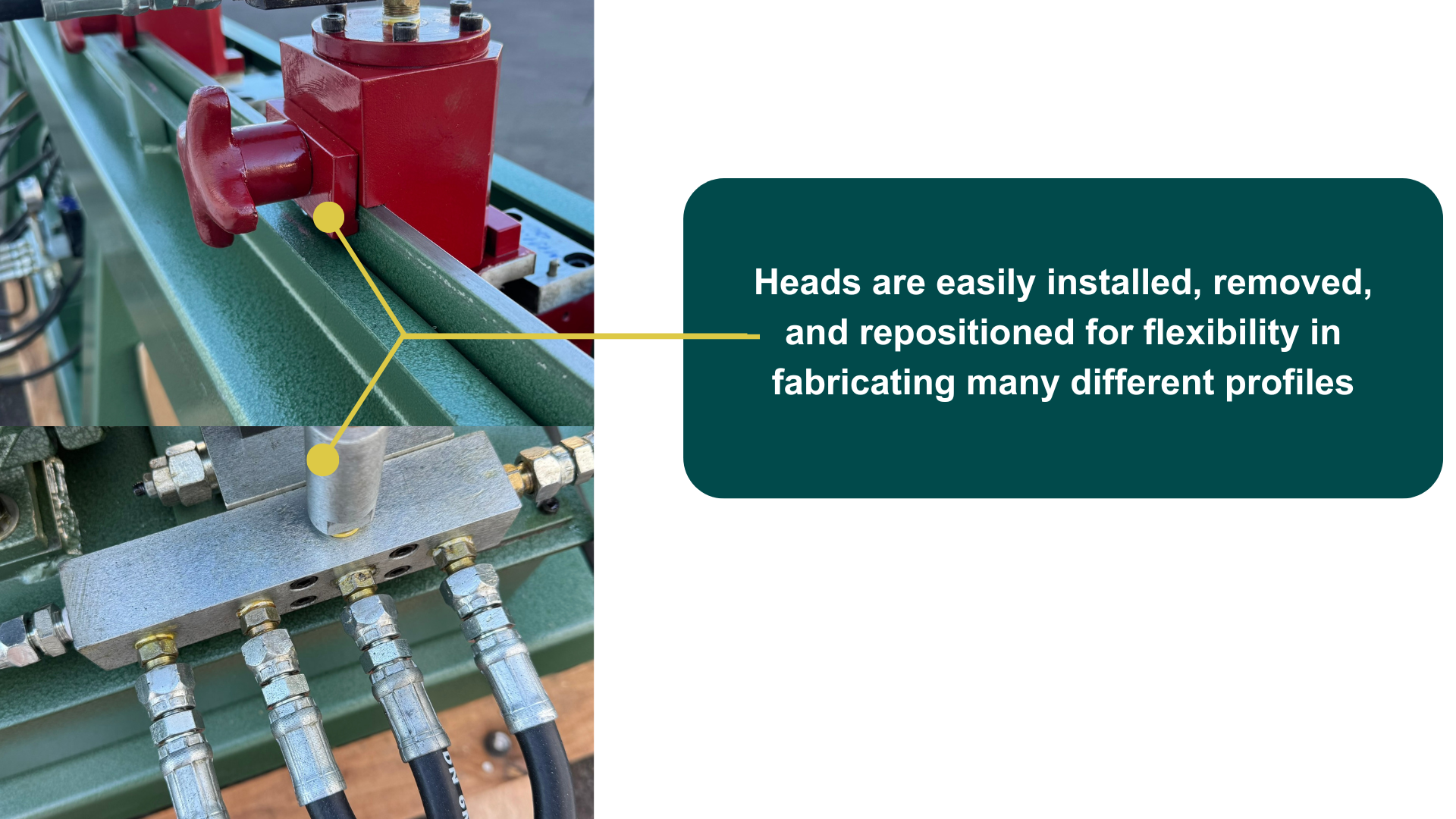

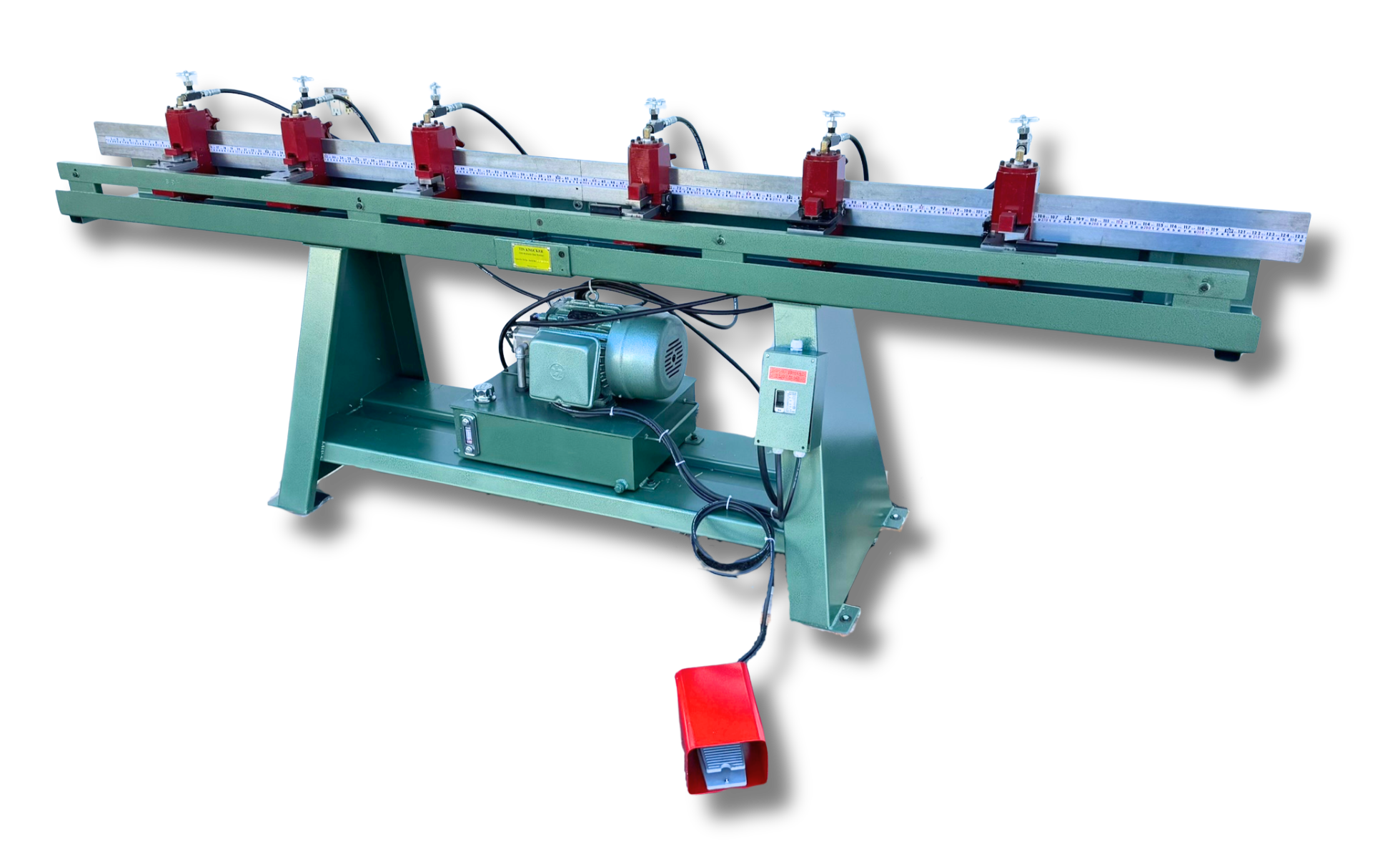

The 1016 Hydraulic Duct Notcher comes equipped with 5 heads from the factory, but can be equipped with up to 10 heads (at additional cost), depending on customer needs and application. With this flexibility in head configuration, it can be used to fabricate both full-wrap and L duct. The 1016 is the perfect tool to bring your shop’s capability and efficiency to the next level.

See TK 1016 Duct Notcher Manual.

Categories: ,
  • Material capacity: 16 to 28 gauge mild steel
  • Included Heads: 5 heads of customer's choice included with purchase
  • Max. V-notch depth: 1-1/2”
  • Max. Corner notch depth: 1-1/4”
  • Max. TDC notch depth: 2-1/8”
  • Motor: 3 HP, 115/230V, 60hz, 1800 RPM
  • Shipping Dimensions: 79”W x 36”L x 36”H
  • Shipping Weight: 880lbs
  • 5 heads of buyer's choice included with machine purchase
  • Additional heads available for additional cost

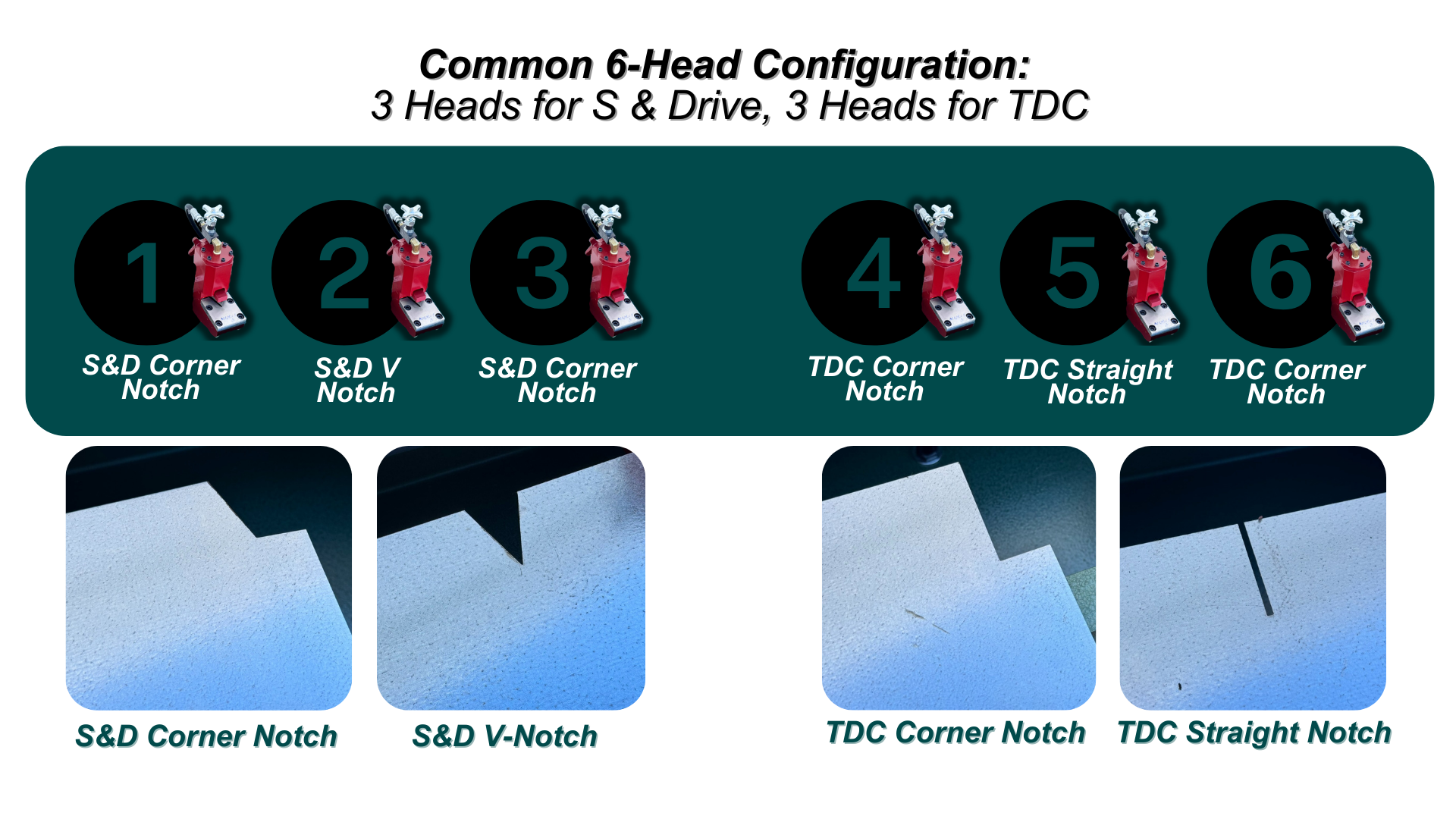

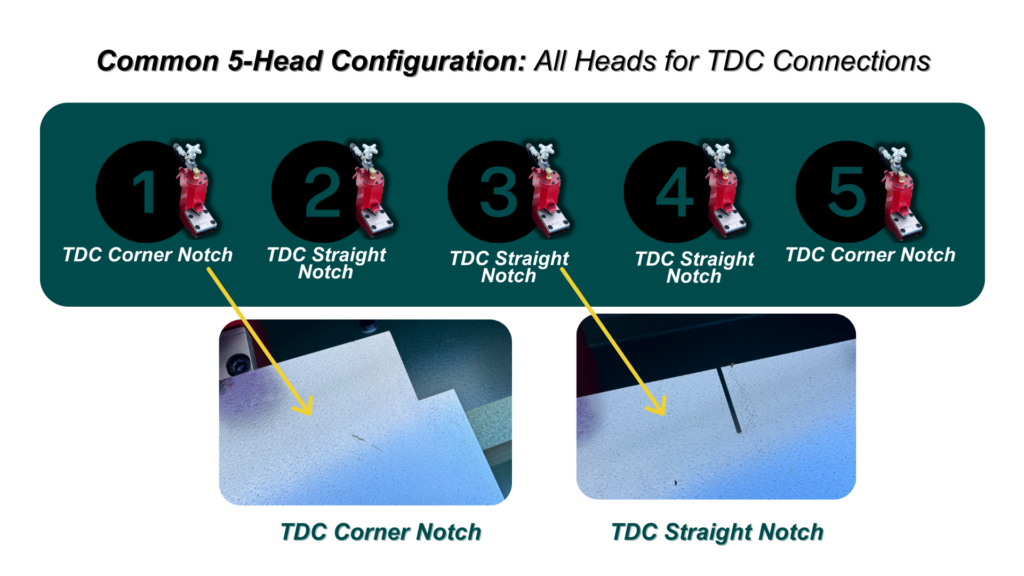

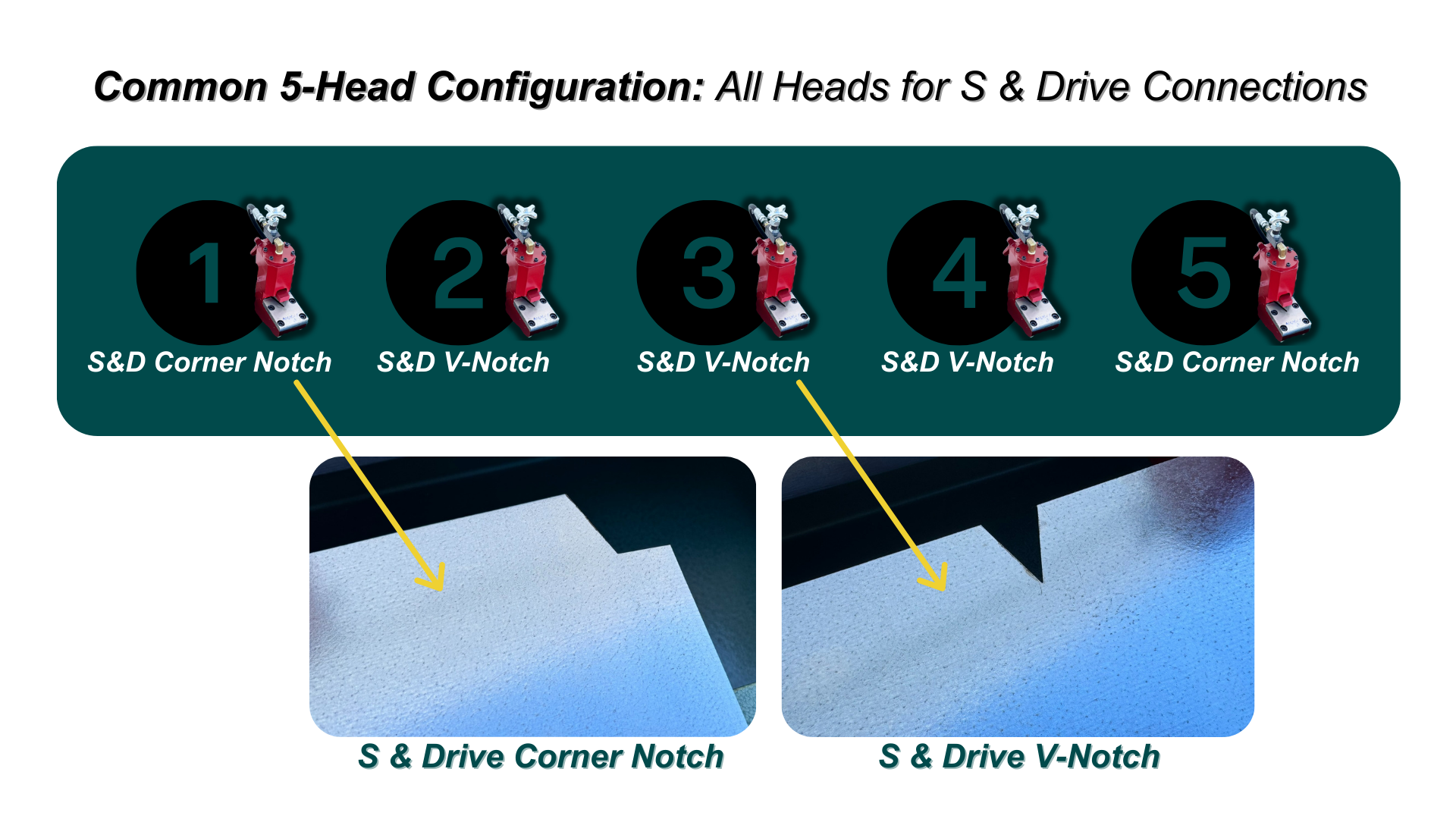

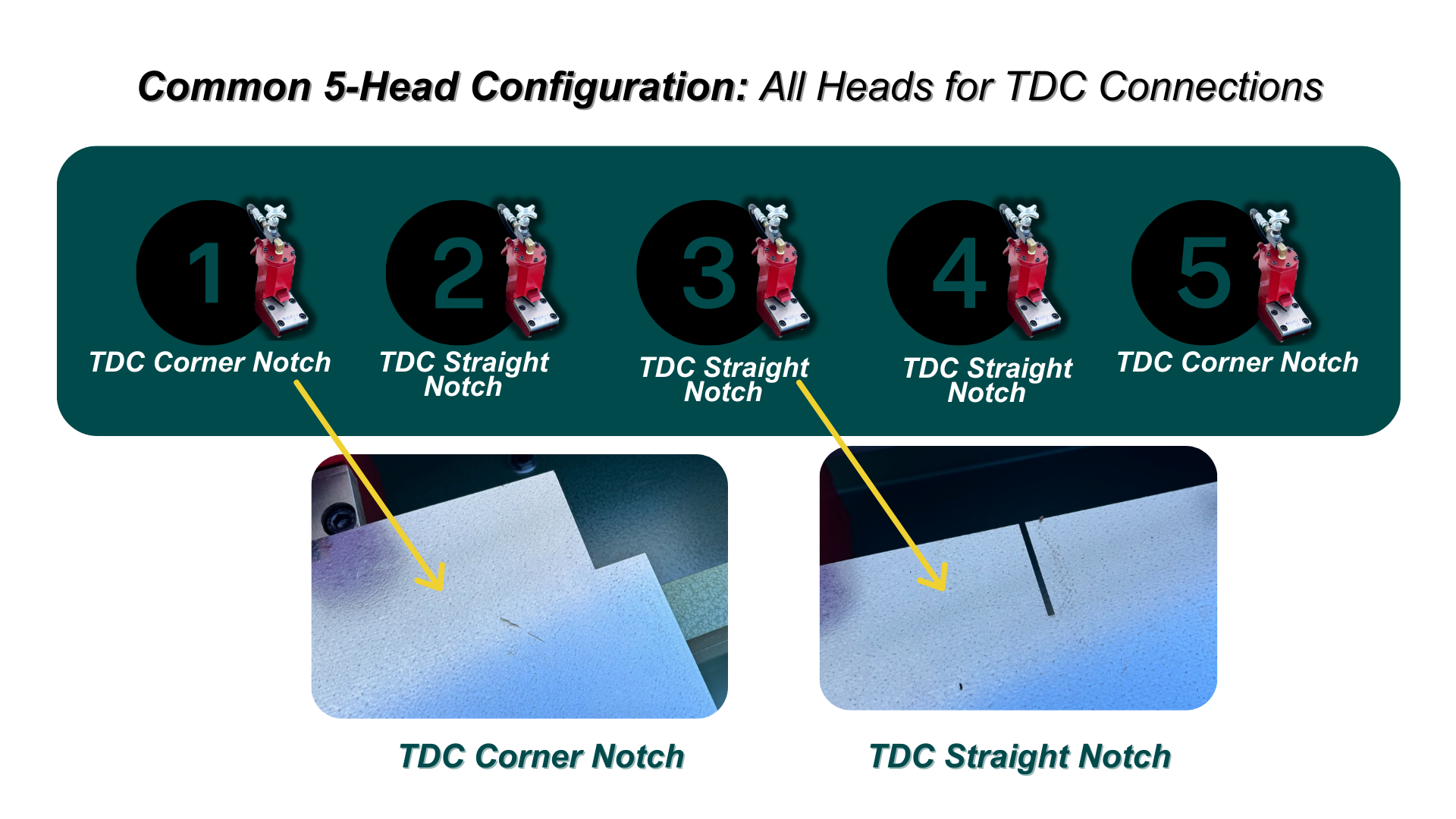

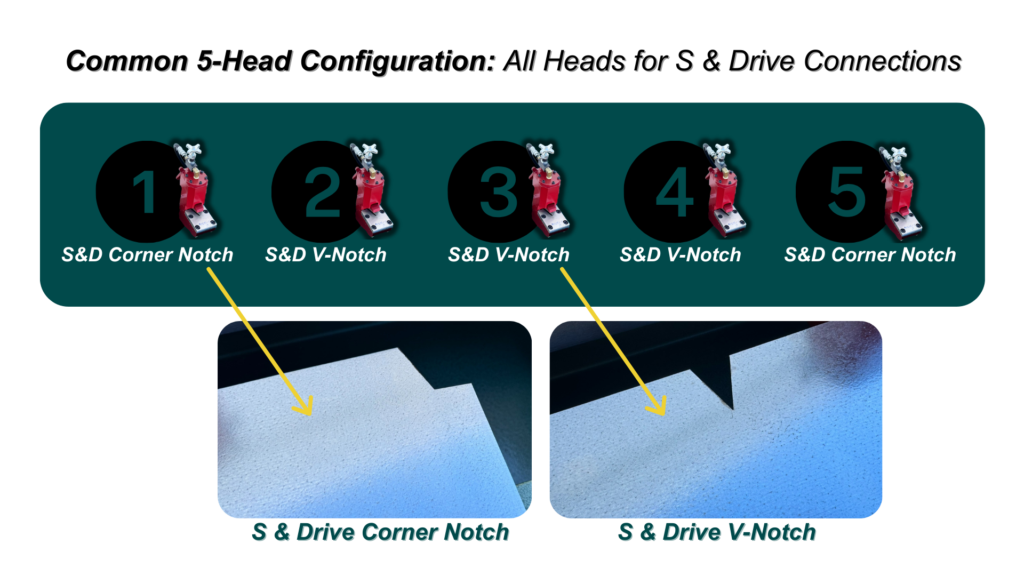

  • Common 5-head configurations for S & Drive and TDC connections shown below
  • Maximum TDC notch depth is 2-1/8”, also compatible with select TDF connections, depending on material
