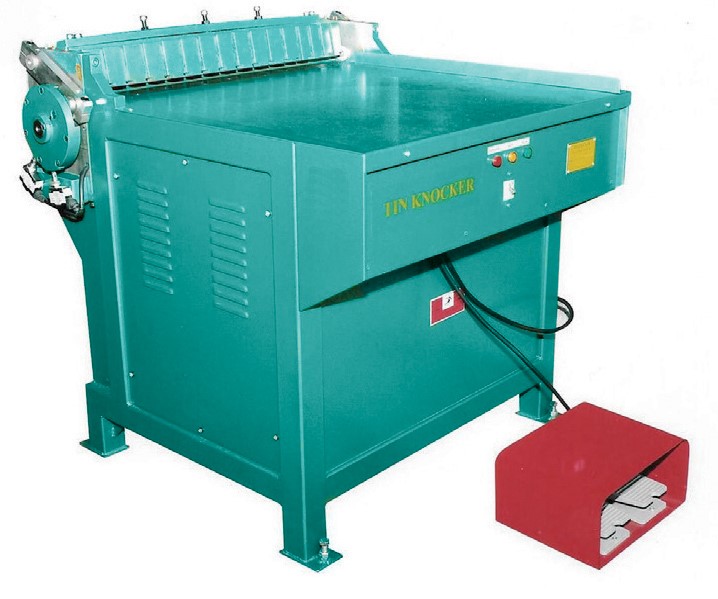

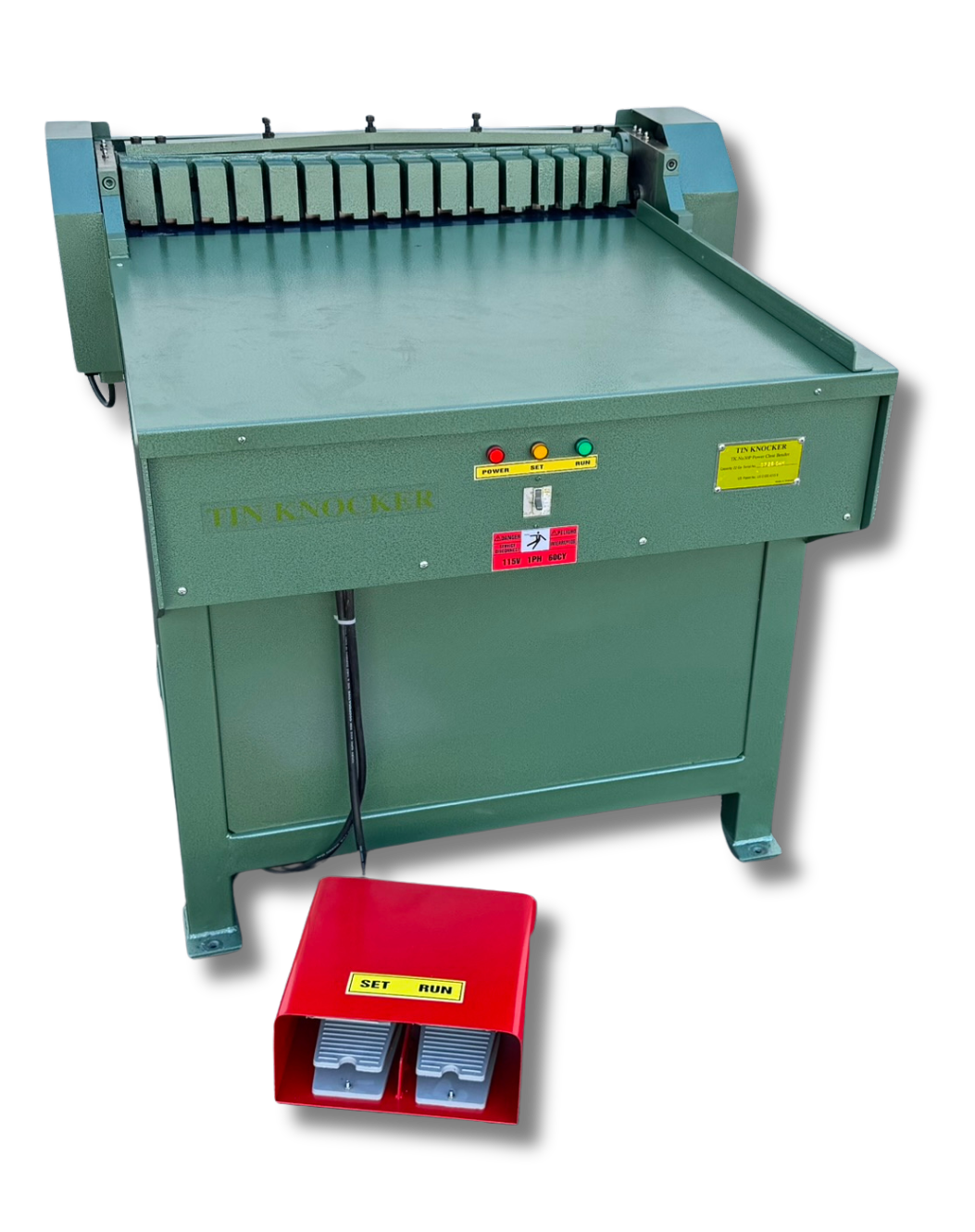

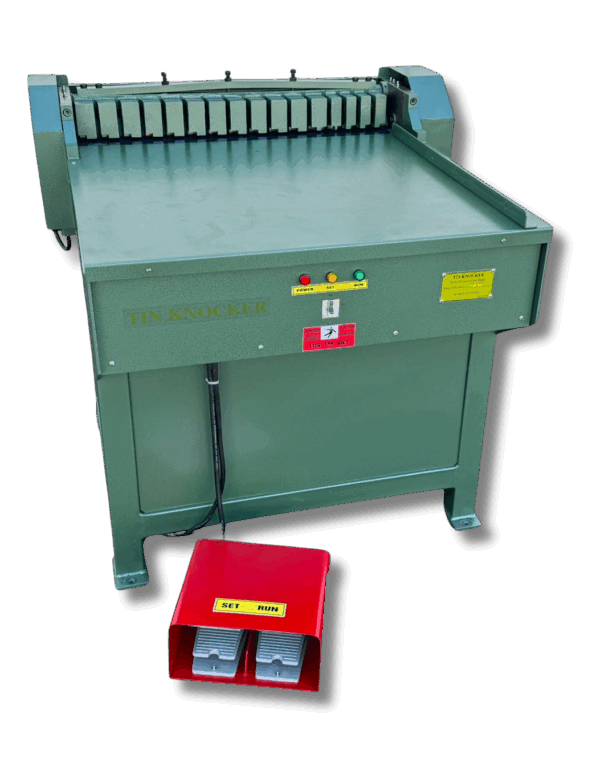

TK No. 30 Power Cleat Bender



The TK No. 30 Power Cleat Bender is a smooth running, quiet machine that will last a career.  Fast and efficient, this machine effortlessly prepares the duct for drive cleats.  The machine is strong enough to form the reverse, open him with a swift wiping action.  THIS MEANS LITTLE OR NO SHOCK AND THE MACHINE WILL NOT KILL ITSELF.  The TK No. 30 is the only machine in the market with a proven FAILSAFE SYSTEM which protects the machine from damage due to operator error.  It’s oversized table promotes safety and improved control of already formed duct sections.

US Patent No. US D830,4315 S

In stock.  Available from a distributor near you.

See TK No. 30 Power Cleat Bender Manual.

Product Description


  • Maximum Capacity 22-gauge mild steel or equivalent
  • Table top height or working surface height 31 inches
  • Table top length not including CLEAT BENDER 36 inches
  • Overall length 49 inches
  • Maximum width capacity 30 inches
  • 1 HP Motor for 110 Volt, single phase 60 HZ
  • Approximate shipping weight 650 Lbs.
