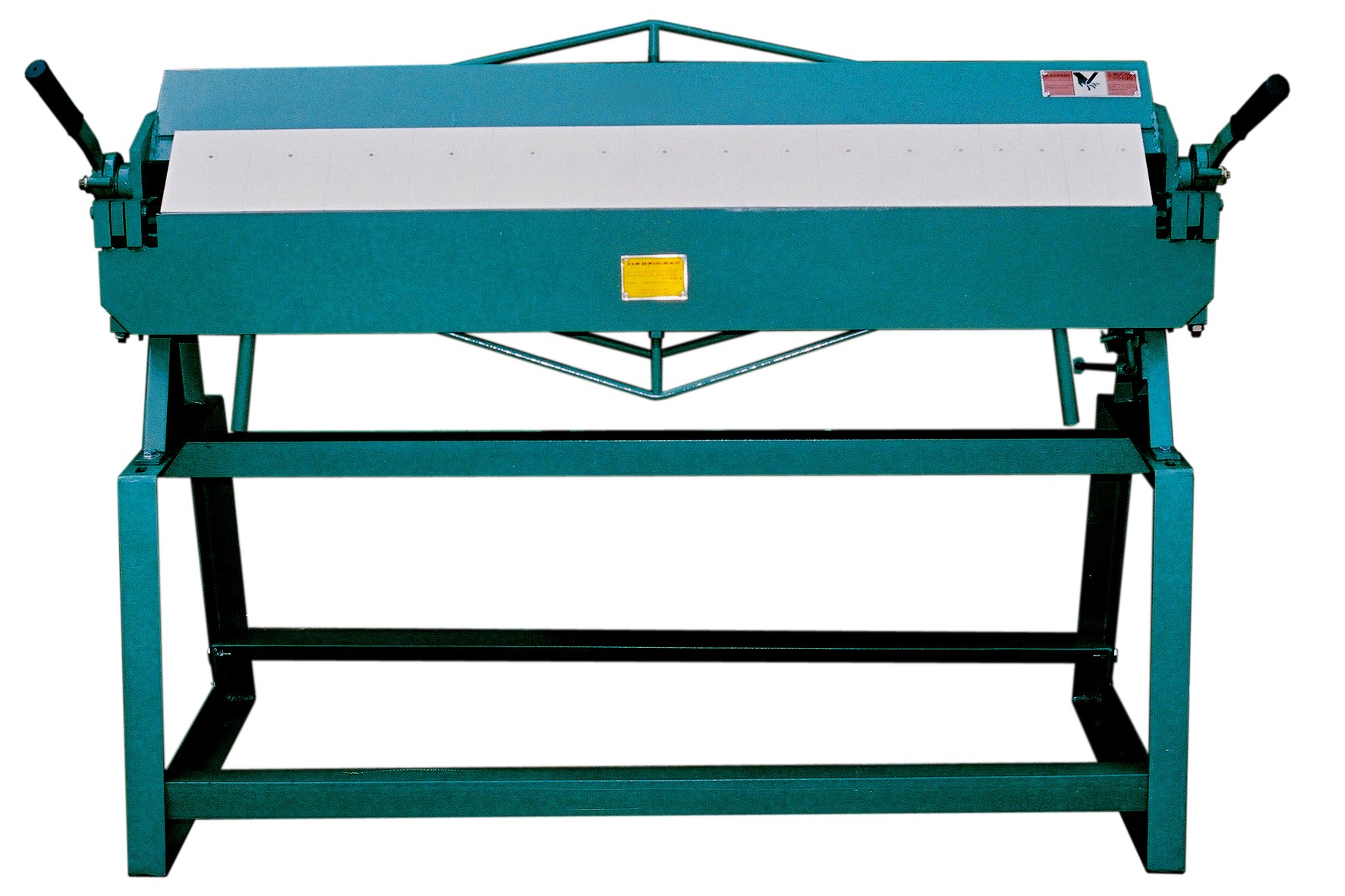

TK 2248 Box & Pan


Available from a distributor near you. Normally in stock in one of our warehouses.

Durable and dependable! The TK box and pan brakes give you all the features you would expect from quality machines. Of all steel welded construction, with adjustable truss bars and bronze bushings, these brakes are built to last. The brakes come with removable apron angle and apron insert, permitting .25″ (6.35mm) reverse bends in lighter materials. The nose bar is removable as well, and the brakes are equipped with a precise stop rod for repeat bends.

Optional Stand for $195.

See 2248 Box and Pan Brake Manual.

Product Description


  • Weight: 356 lbs
  • Dimensions: 64 x 28 x 32 in
  • Capacity: 22 Ga.
  • Bend Length: 48”
  • Max Beam Lift: 7/8”
  • Max Box Depth: 3”
  • Min. Reverse Bend: 5/16
  • Min. Flange: 3/8”
