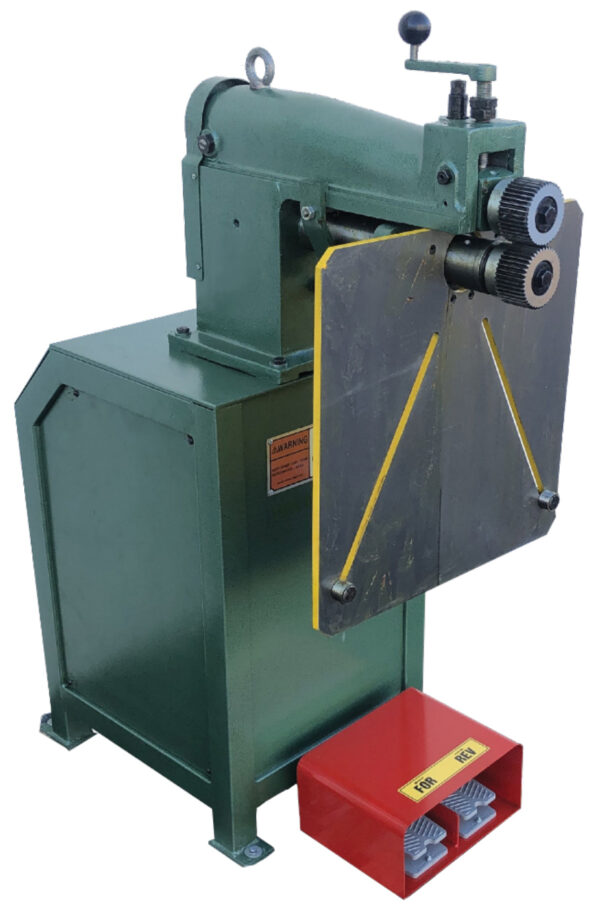

TK Power Crimper Beader

$4,950.00

This is a versatile, workhorse of a machine. With a 13” throat and capacity of 18- gauge mild steel, it can perform most all beading and swaging functions. It is a beefy 3⁄4 HP machine, with the business end made of solid, machined cast iron, mounted on a sturdy sheet metal cabinet. A two-pedal foot switch allow the operator to have two hands free at all times when changing direction of the rolls. An enlarged back gauge plate also facilitates handling of the part. Includes spacer collars for all operations except flanging. Rolls on this machine are interchangeable with the Roper Whitney Pexto 3617 rolls.

See TK Power Crimper Beader Manual.

Product Description

Specifications:

  • Weight: 340 lbs
  • Dimensions: 39 x 52 x 14.5 in
  • Capacity: 18 gauge mild steel
  • Throat to frame: 13″
  • Throat to gauge: 12.25
