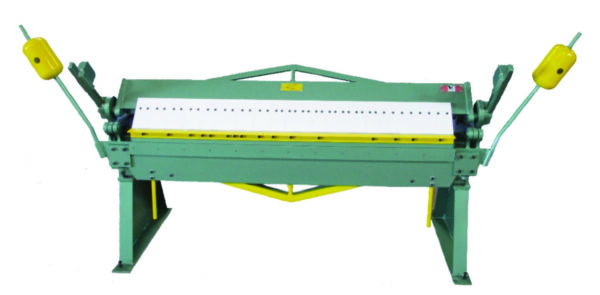

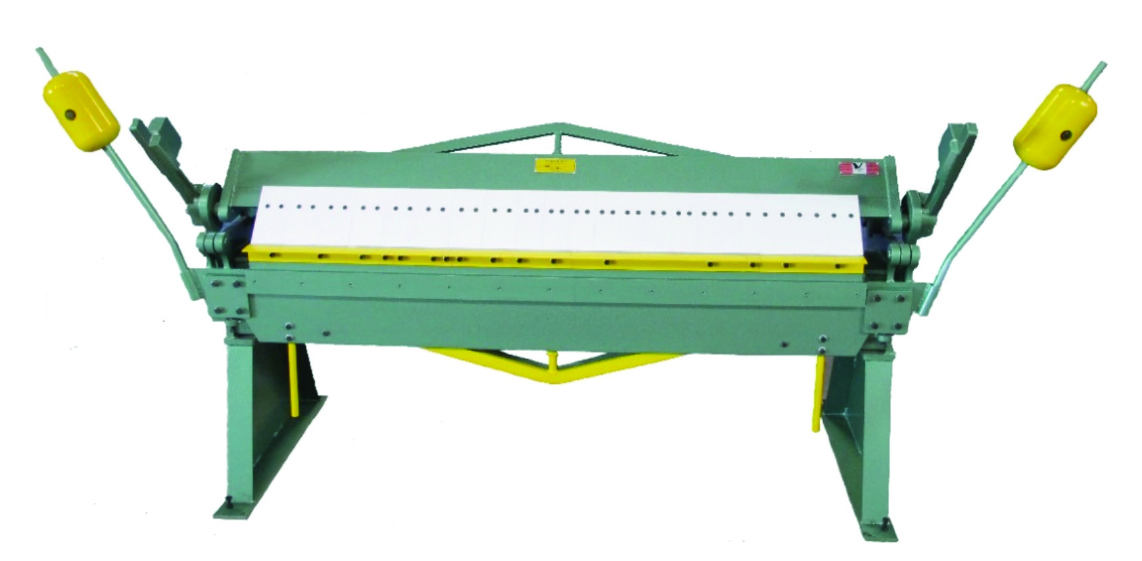

TK 616 Universal Brake

$7,950.00

An incredibly universal hand brake. Featuring box & pan fingers up top and segmented, relocatable bend apron tooling below. Perfect for complex parts to include flange down bends, transverse duct forming & much more. With strategically positioned counter weights this brake makes for easy and smooth manual bending.

See TK 616 Universal Brake Manual.

Product Description

Specifications:

  • Capacity with lower tooling flanges: 72” x 16 gauge (1.6mm)
  • Capacity without lower tooling flanges, 72” x 20 gauge (1.0mm)
  • Lift of beam: 1.5″” (38.1mm)
  • Front to back ram adjustment: 1/2″ (13mm)
  • A minimum reverse bend of 5/8″ (16mm)
  • Min flange width: 1″ (25mm)
  • Finger widths: 1″, 3″, and 4″ (50.8, 76.2, and 101.6mm)
  • Lower segment tooling widths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
  • Bending beam tooling (segmented) lengths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
  • Maximum transverse bend in center of machine: 2″ (50.8mm)
  • Maximum transverse bend at end of machine: 3″ (76.2)
  • Footprint with counter weights: 95x38x54in (2413x965x1346x1372mm)
  • A shipping weight of 1850 lbs. (839kg) – HERE’S THE BEEF!
