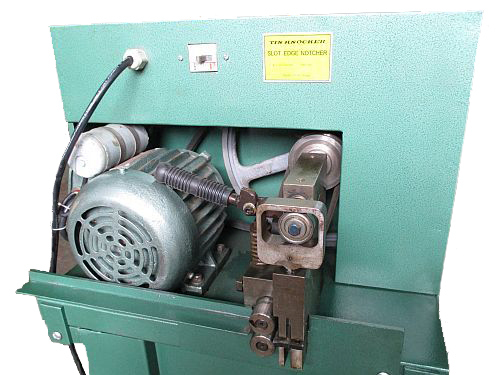

TK Edge Notcher

$2,350.00

The TK Edge Notcher can now be ordered with either:  Slot Notch or “V” Notch!  Includes both sets of tooling 1 machine to 2 notches.

See TK Edge Notcher Manual.

Categories: ,

Product Description

Machine Specifications:

  • Motor - 1/3 HP, 110v, Single Phase, 60Hz AC
  • Capacity - 20 Gauge Mild Steel
  • Speed - Variable Minimum 18 FPM
  • Overall Dimensions - 21" Long, 16 1/2" High, 13" Deep
  • Approx. Shipping Weight - 290 Lbs.

Specifications V Notch:

  • Depth of notch range: 0 to 3/4"
  • V is at 15 degrees
  • Spacing - 3/4" to 1 7/16"

Specifications Slot Notch:

  • Depth of Notch - 0 to 3/4"
  • Width of Notch - 3/16"
  • Spacing - 3/4" to 1 7/16"
