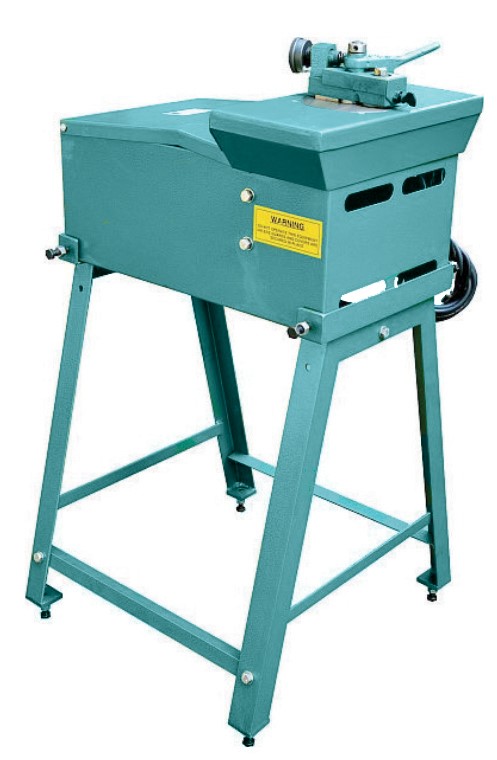

TK No. 20 Power Flanger w/Stand

$2,250.00

Tin Knocker® NO. 20 Power Flanger

This power flanger has the “auto-guide” feature, which automatically controls the forming of a right-angle flange. It will contour and follow any edge, straight or curved. Using the convenient table slot, the operator merely turns up a starting edge, starts the material through the rolls and lets go.

See TK 20 Ga Power Flanger Manual.

Categories: ,

Product Description

Specifications:

  • Weight: 207 lbs
  • Dimensions: 25 x 25 x 41 in
  • Capacity: 20 Ga. maximum. Working range 20-26 gauge
  • Flange Height: Approx 7/32" For open-end fittings, straight and irregular curves
  • Motor: 1/3 HP, 1800 RPM for 115 volt, single phase operation
