TK 2n1 Crimper Beader

$1,250.00

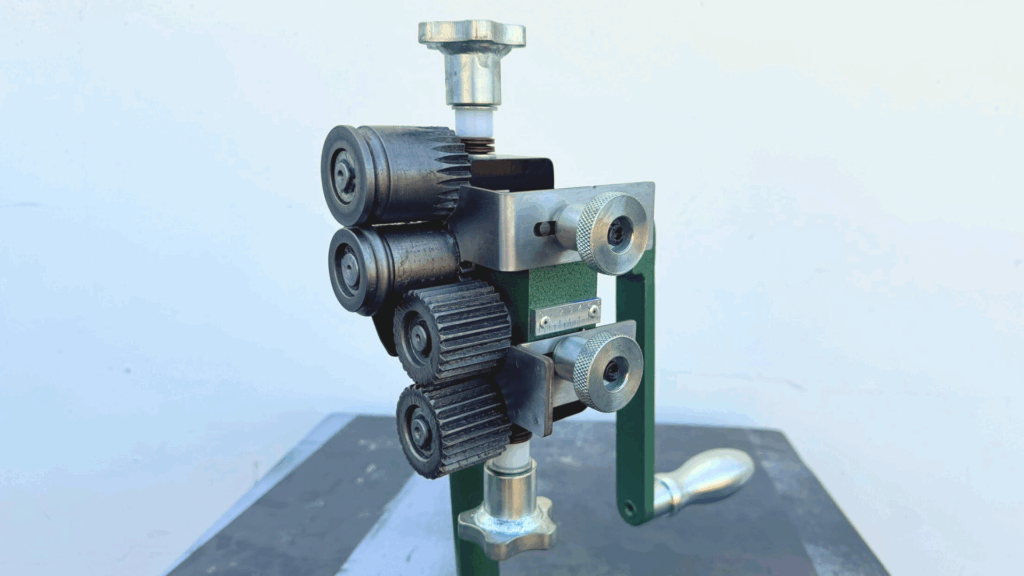

The Tin Knocker 2n1 Crimper Beader is a simple, affordable, and easy-to-use manual machine that can perform both beading and crimping functions. It’s lightweight and easy to transport to job sites, and can quickly be set up without any tools, thanks to the robust clamping mechanism.

Once set up, the hand-cranked 2n1 Crimper Beader is ready to create either 1/8” or 1/4” beads, along with crimping. Large, easy-to-use adjustment knobs allow the operator to quickly dial in roll position for different material thickness, as well as guide position and depth for accurate repeatability of both beading and crimping.

Specifications

  • Material Capacity: 0.030"/22 ga
  • Maximum Crimp Width: 1-1/2"
  • Bead diameter outside, large bead : 1/4"
  • Bead diameter outside, small bead : 1/8"
  • Max. Distance, Bead Center-to-Edge : 1-1/2"
  • Dimensions: 26”x16”x12”
  • Shipping weight: 28 lbs
  • Thickness range of bench top for mounting : 3/4" to 3-1/2"
