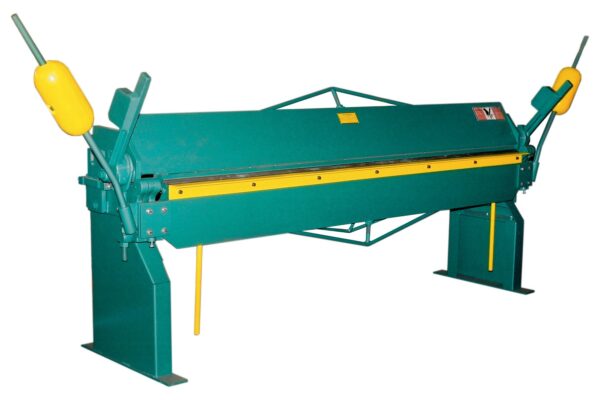

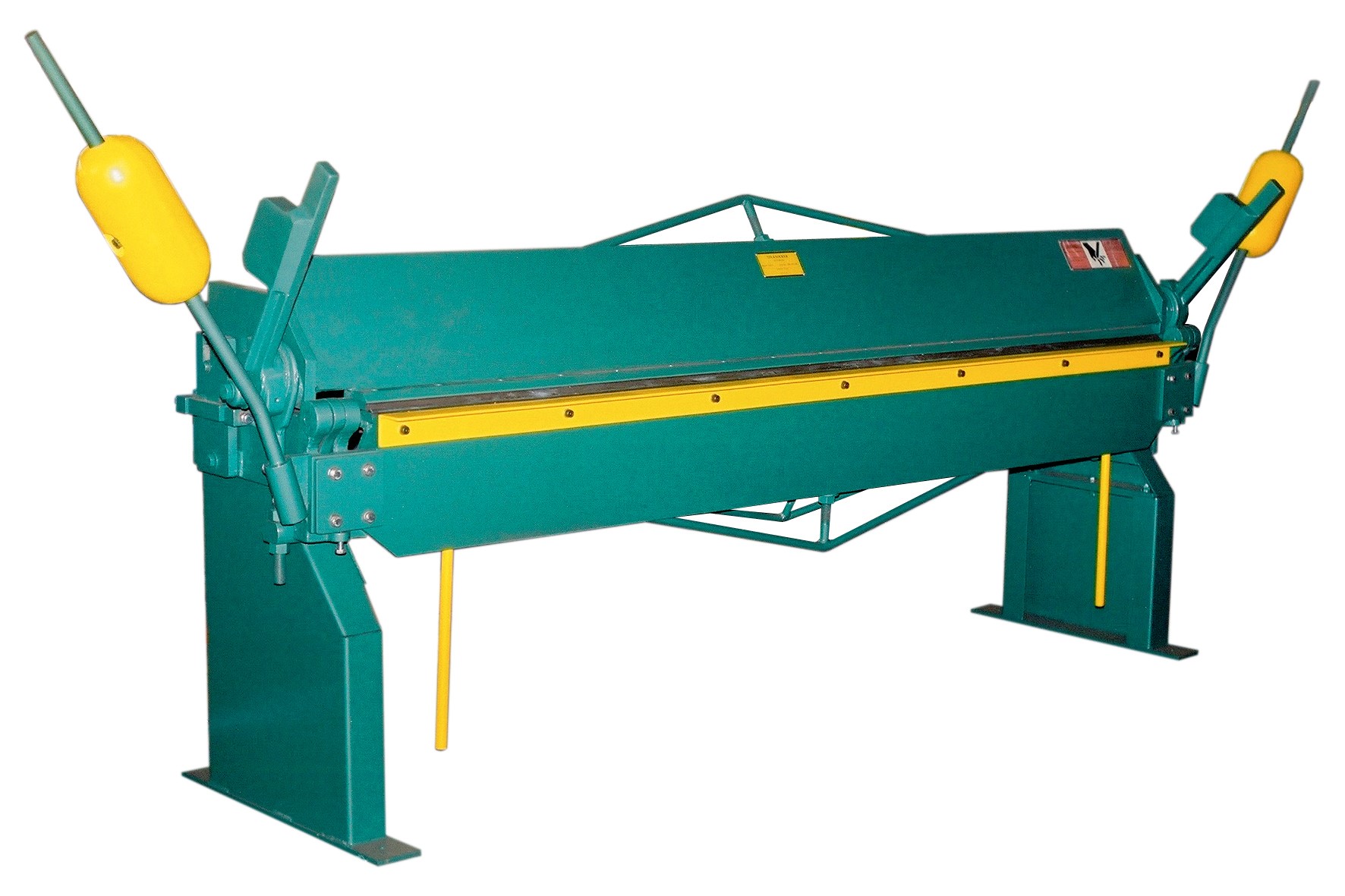

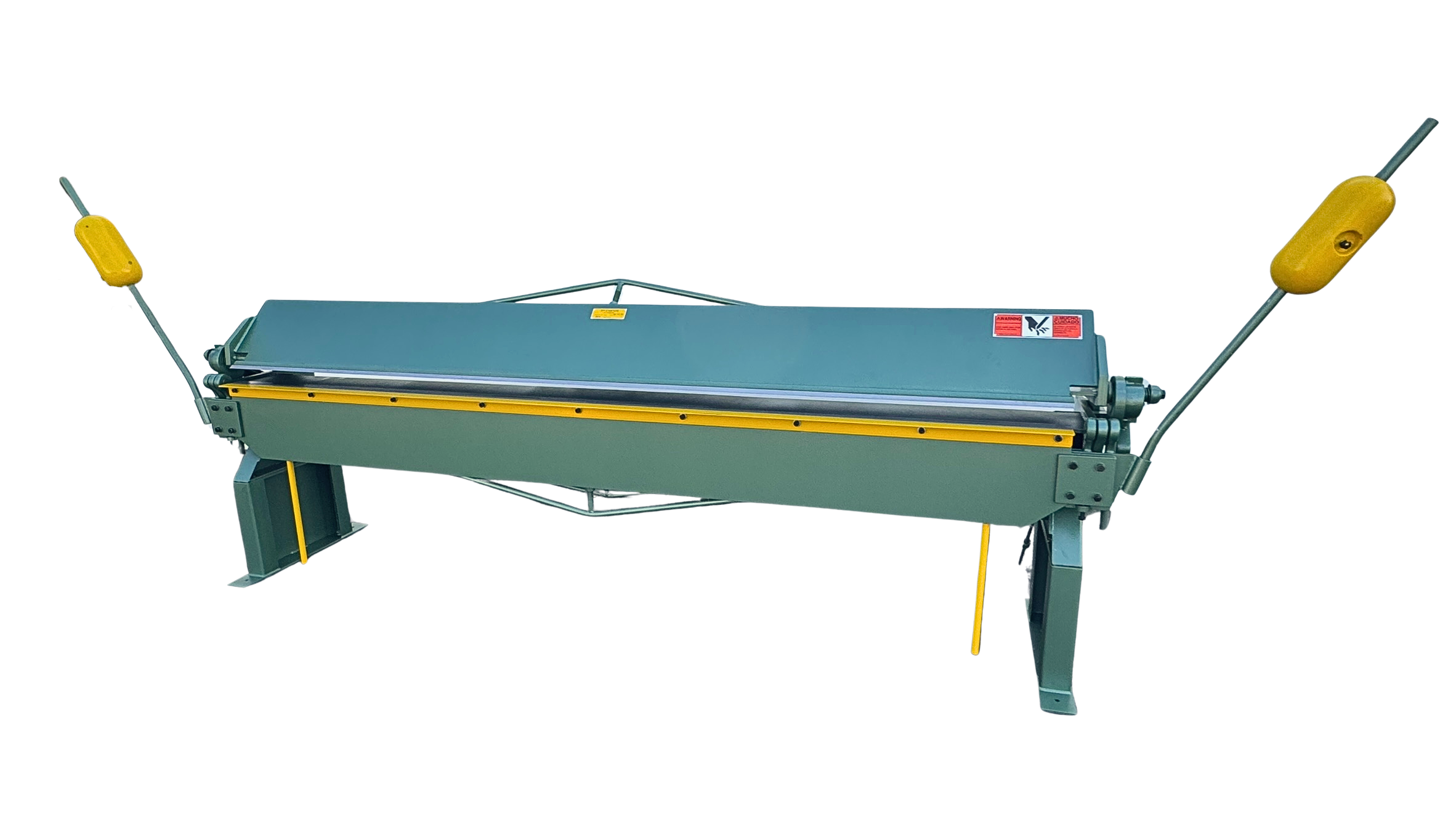

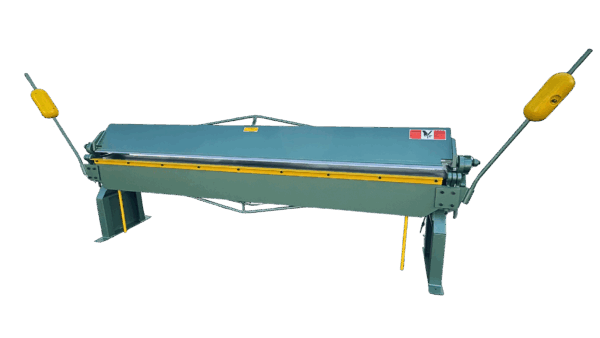

TK 816 Leaf Brake

$6,150.00

The Tin Knocker 816 Leaf Brake is a heavy duty, manual sheet metal brake, capable of bending material up to 8 feet wide and 16 gauge weight. The 816 is an industrial-quality brake, designed and built to last.

The Tin Knocker 816 Leaf Brake includes the following features:

  • A spring steel nose bar for durability and long-lasting service
  • A heavy plate fabricated frame, paired with a full-length stiffening bar to bend smoothly and consistently to maximum material capacity.

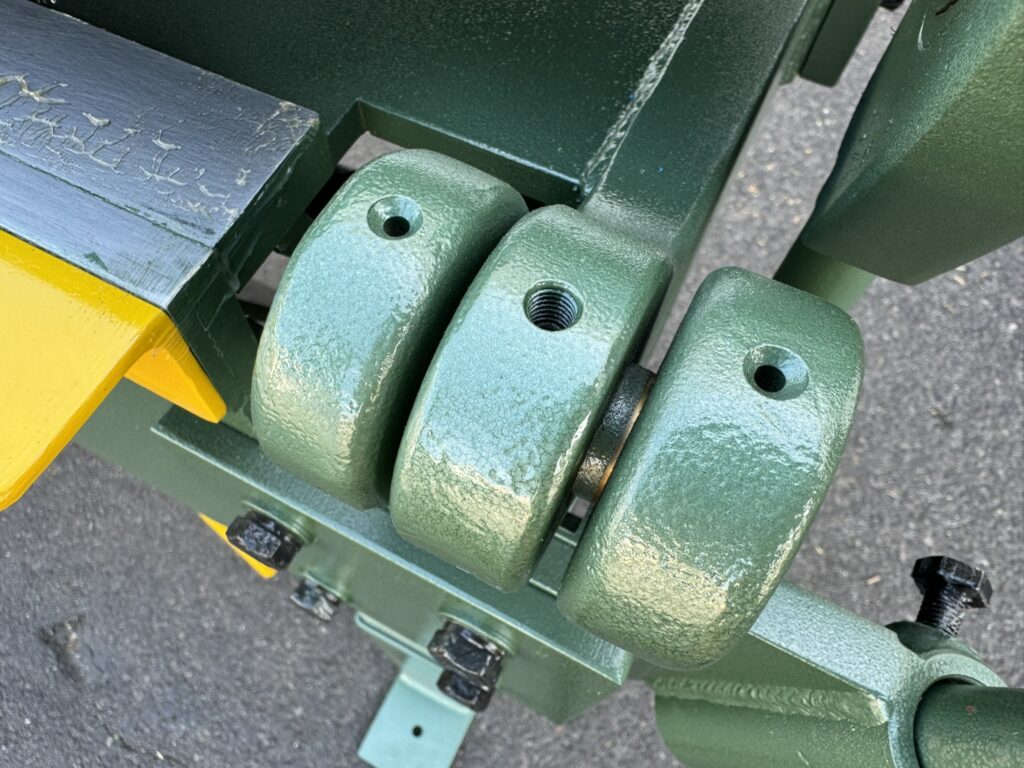

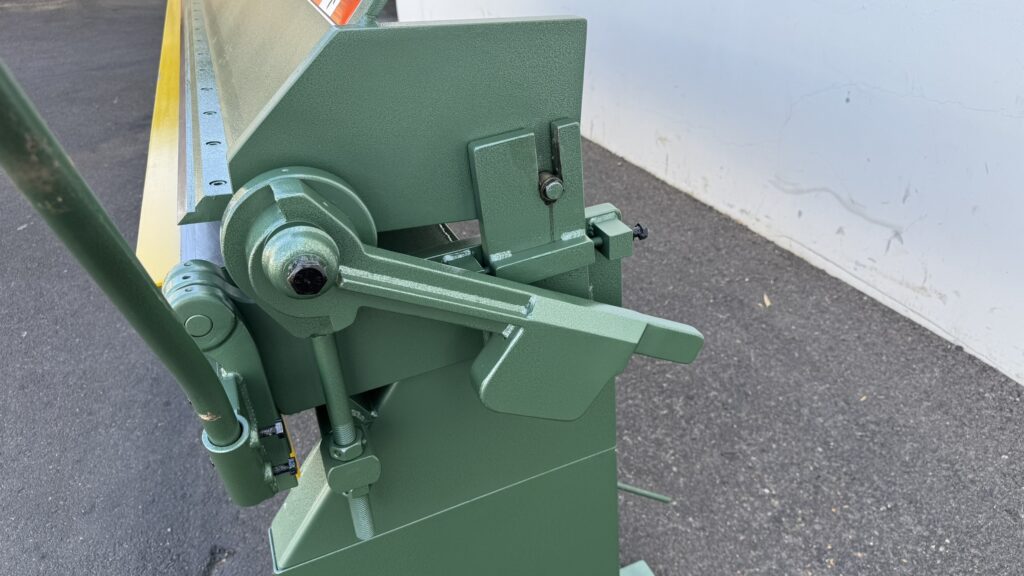

  • A heavy-duty clamping mechanism, and bronze bushings at pivot points with zirks for lubrication. Easily serviceable and rebuildable.
  • A simple, adjustable angle-stop for accurate, repeatable bends up to 135 degrees.

TK 816 Leaf Brake Manual

Categories: ,

Specifications:

  • Material Capacity: 16ga
  • Max. Bend Length: 8'-1"
  • Beam Lift: 2-1/4"
  • Max. Bend Angle: 135°
  • Box/Pan Depth: 2" on 3 sides
  • Dimensions: 120" x 32" x 43"
  • Weight: 2480 lbs
  • Included Equipment: Bolt-on apron angle & counterweights
